NT240M-HH-S6 - Datasheet
Brighton Best
Category Information
Nuts - Hexagonal - Half - Stainless SteelStainless Steel Half Hexagonal Nuts. UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.

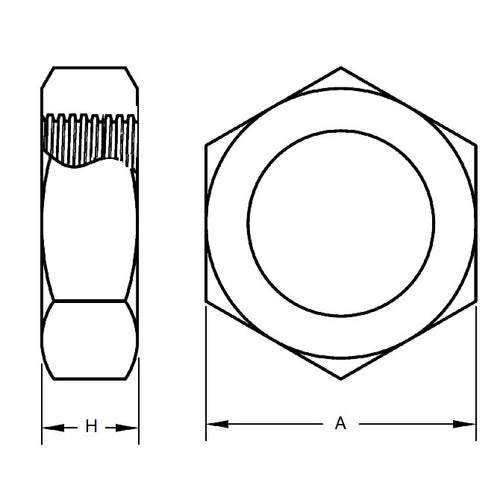

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.

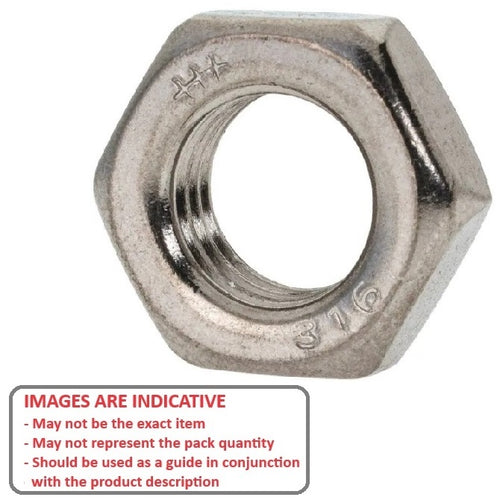

Product Data
- Thread Size : M24 (24x3mm)
- Thickness (H) 10.9 mm
- Across Flats (A/F) 36.0 mm
- Type Half Nut
- Pitch 3.000 mm
- Threads Per Inch 8.46 TPI
- Material Stainless Steel 316 (Similar to A4 or 18-10)
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 562062
- 93935A370
