KM100M-050-5L20 - Datasheet

MBA

Category Information

Knobs - Lobe - Five Lobe - Male - Standard

Standard Male Five Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M10 (10x1.5mm)
  • Head Diameter (A) 50.00 mm
  • Thread Length 20.0 mm
  • Colour Black
  • Hub Diameter (C) 20.00 mm
  • Hub Length (D) 8.00 mm
  • Knob Height (B) 25.00 mm
  • Material Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi® C-NWJM10-20
  • Reid Tool® KPB-1483
  • CNWJM1020
  • KPB1483
View full details

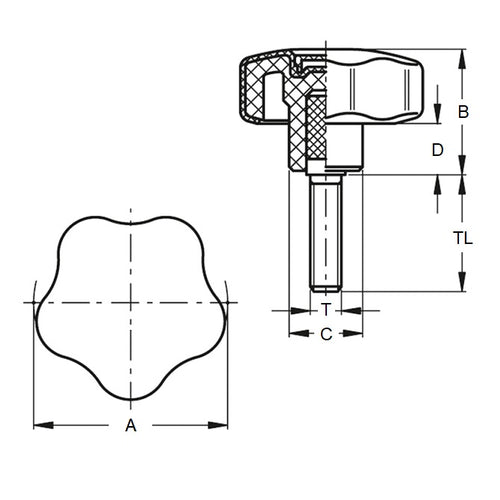

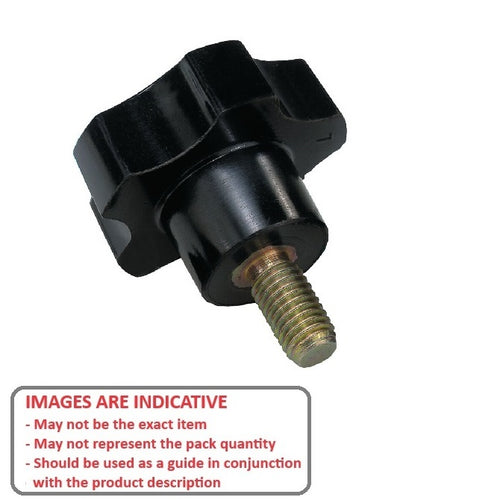

KM100M-050-5L20DiagramKM100M-050-5L20Image
