S699-ZZ-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

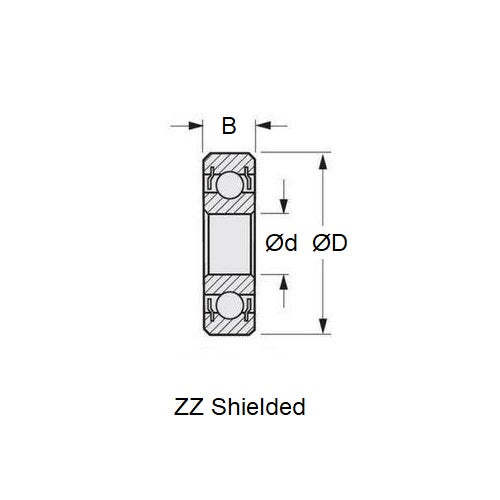

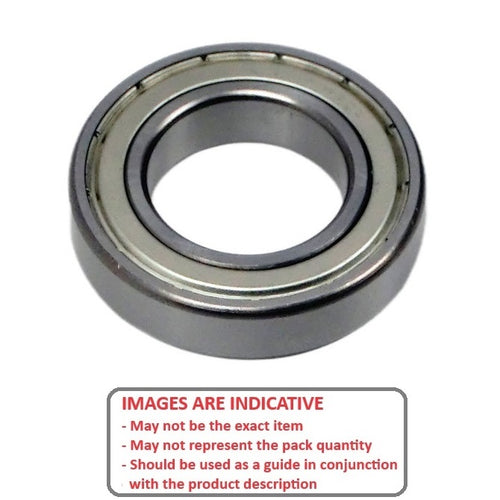

Double shielded standard stainless steel bearing
- ID (d)
:
9.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.354 in.) - O.D. (D)
20.000
mm
+ 0.000 / - 0.010
(Equiv. 0.787 in.) - Width (B)
6.000
mm
+ 0.000 / - 0.125
(Equiv. 0.236 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 699
- Limiting Speed 34000
- Cage Type Ribbon
- Static Load Rating KGf 110
- Dynamic Load Rating KGf 252
- Radii 0.30 mm
- Inner Shoulder (UI) 11.60mm
- Outer Shoulder (UO) 17.44 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Fishing Reel Parts
- RC Nitro Engine Parts
- Alvey® - Quantum Zebco - Bearing
- Shimano® - Baitrunner 4500 / 6500A - Spool Shaft Bearing 9-20-6mm
- Shimano® - G5 - Bearing
- Shimano® - TSS4 - Rotor Bearing
- ASP® - 36 All Models - Bearing
- China Shanghai® - CS - 46 - Bearing
- China Shanghai® - CS049 New - Replacement Rear Bearing
- Evolution® - 36NT - 60 - Bearing
- Evolution® - 36NT - 80 - Bearing
- Magnum Power® - XL - 15 - Bearing
- Magnum Power® - XL - 25 - Bearing
- Magnum Power® - XL - 32 - Bearing
- Magnum Power® - XLS - 32 - Bearing
- Magnum Power® - XLS - 52 - Bearing
- Magnum Power® - XLS - 70 - Bearing
- MVVS - 21 All Models - Bearing
- MVVS - 61 -77 - Replacement Front Bearing
- MVVS - GFS/R-ABC-RC - 40 - Bearing
- OS Engines® - 21 EX-M ABC RC MAR - Front Bearing 9-20-6mm
- OS Engines® - 21 EX-R ABC RC - Front Bearing 9-20-6mm
- OS Engines® - 21 RF-B ABC RC - Front Bearing 9-20-6mm
- OS Engines® - 21 SE-B ABC RC - Front Bearing 9-20-6mm
- OS Engines® - 21 SE-M ABC RC MAR - Front Bearing 9-20-6mm
- OS Engines® - 21 SE-R ABC RC - Front Bearing 9-20-6mm
- OS Engines® - 21 VF-R ABC RC - Front Bearing 9-20-6mm
- OS Engines® - 25 VF ABC RC - Front Bearing 9-20-6mm
- OS Engines® - 25 VF-DF ABC RC - Front Bearing 9-20-6mm
- OS Engines® - 32 SX-H Heli - 2 Stroke - Front Bearing 9-20-6mm
- OS Engines® - 32 SX-HX Heli - 2 Stroke - Front Bearing 9-20-6mm
- OS Engines® - 61 SF-HS and RF-HS RC - Front Bearing 9-20-6mm
- OS Engines® - FX - 160 - Bearing
- OS Engines® - FX - 300 - Bearing
- OS Engines® - RF-B - 21 - Bearing
- OS Engines® - RF-B - 61 - Bearing
- OS Engines® - RF-HS - 61 - Bearing
- OS Engines® - SE-B - 21 - Bearing
- OS Engines® - SE-M - 21 - Bearing
- OS Engines® - SE-R - 21 - Bearing
- OS Engines® - SF-HS - 61 - Bearing
- OS Engines® - SX - 40 - Bearing
- OS Engines® - SX - 61 - Bearing
- OS Engines® - SX-H - 32 - Bearing
- OS Engines® - SX-H - 50 - Bearing
- OS Engines® - SXH-R - 32 - Bearing
- OS Engines® - SX-HX - 50 - Bearing
- OS Engines® - SX-HX - 61 - Bearing
- OS Engines® - SX-MX - 32 - Bearing
- OS Engines® - SX-MX - 61 - Bearing
- OS Engines® - VF ABC RC - 18 - Bearing
- OS Engines® - VF ABC RC - 61 - Bearing
- OS Engines® - VF-BR Buggy - 25 - Bearing
- OS Engines® - VF-BR Buggy - 40 - Bearing
- OS Engines® - VF-DF ABC RC - 25 - Bearing
- OS Engines® - VF-DF ABC RC - 40 - Bearing
- OS Engines® - VF-HS With Cone - 61 - Bearing
- OS Engines® - VR BR BUG - 48 - Bearing
- OS Engines® - VR BR BUG - 76 - Bearing
- Thunder Tiger® - 36 Pro - 2 Stroke - Replacement Front Bearing
- Thunder Tiger® - 36H - 2 Stroke - Replacement Front Bearing
- Thunder Tiger® - 39H - 2 Stroke - Replacement Front Bearing
- Thunder Tiger® - Pro H - 36 - Bearing
- Thunder Tiger® - Pro H - 90 - Bearing
Cross References
- SHIMANO® 244
- SS699ZZMC3 699
- Stainless 699ZZMC3
- Stainless 699-ZZ-MC3
- SHIMANO® BR0129
- SHIMANO® RD0244
- SHIMANO® RD13582
- SHIMANO® RD8372
- SHIMANO® RD8628
- Shielded S699 / 6
- GRW S699-2Z
- Shielded SS699 / 6
- GRW SS699-2Z
- SHIMANO® TGT0813
- SHIMANO® TGT0886
- SHIMANO® TGT1573
- SHIMANO® TT02200
- ADR WAY9-ZZ
- SSL2090-ZZ
- SS-L2090-ZZ
- SSL2090ZZ
- DDL2090ZZ
- DDL2090-ZZ
- DD-L2090-ZZ
- S6992Z
- S699-ZZMC3
- S699SS
- SS699-ZZMC3
- SS699SS
- SS6992Z
- 699-Z-MC3
- 699H-ZZ
- 699ZMC3
- 699HZZ
- WAY9ZZ
- 699 Basic Size Ref
