PF-5 - Datasheet
MBA
Category Information

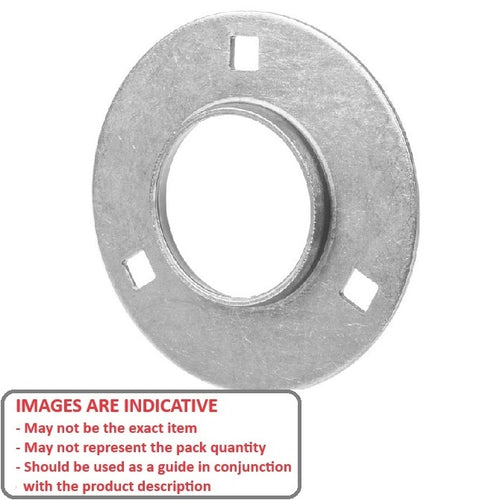

Housings - Flanged - 3 Bolt Hole - Pressed MetalPressed Metal 3 Bolt Hole Flanged Housings. Bearings sold separately.
- An expanded range may be available on special order. Please enquire.
- Use with steel bearing inserts for pressed metal housings.
- Larger sizes available on request.

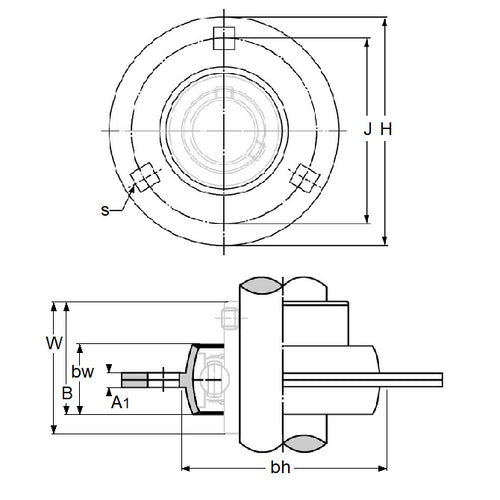

Product Data
- Height (H) : 95.000 mm
- Width - Assembled (W) 28.500 mm
- Bolt Circle Diameter (J) 76.000 mm
- Base Width (A1) 4.000 mm
- Bearing Width (B) 27.000 mm
- To Suit Bearing B5
- Bolt Hole Size (s) 9.000 Square mm
- Body Width (bw) 18.000 mm
- Body Height Clearance (bh) 60.000 mm
- Material Steel
