Miniature Bearings Australia
MW-0907 - Datasheet
MBA
Category Information

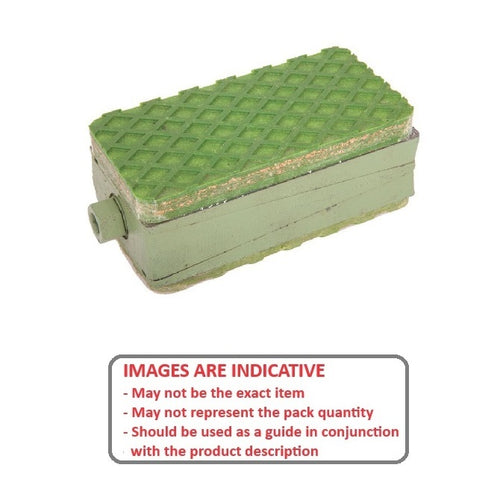

Mounts - Wedge - Light DutyLight Duty Wedge Mounts. Used for leveling all types of production machines.
- Cast iron with non skid pads on top and bottom.
- Excellent isolation and dampening properties. Free standing, compact, low construction height.
- Fine adjustments under full load.
- Pre-tensioned wedges for transverse stability and self locking wedges for longitudinal stability.
Product Data
- Max Load : 907.2 Kg

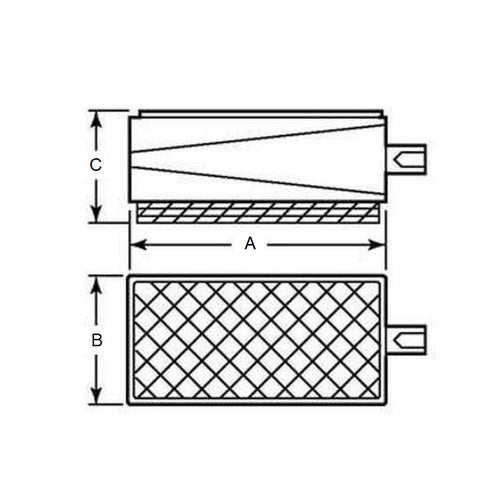

- Length (A) 152.40 mm
- Width (B) 76.20 mm
- Depth (C) 60.33 mm
- Leveling Range +/-4.75 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® AWM-2
- AWM2
