MVIS-0091 - Datasheet
MBA
Category Information

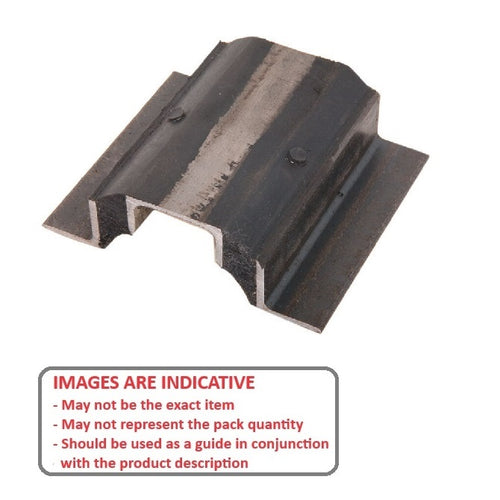

Mounts - Vibro Insulator StripsVibro Insulator Strips Mounts. Vibration dampening
- Continuous metal strip with 50 duro neoprene bonding elements
- Max recommended deflection is 4.8mm which occurs at around 9kg per 10mm
- Available in four lengths
Product Data

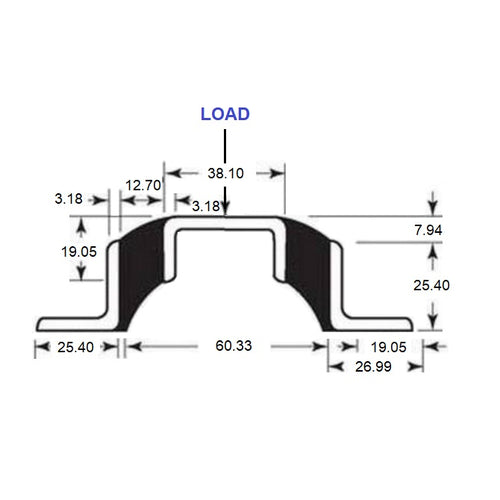

- Max Load : 90.718 kg
- Length 101.600 mm
- Width 114.300 mm
- Height 33.338 mm
- Info Steel bonded with 50 Duro Neoprene
- Info Max Rec. deflection 4.8mm at 9kg per 10mm
- Material Neoprene Rubber and Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® VM-104
- VM104
