RPO-099-101-C - Datasheet
MBA
Category Information

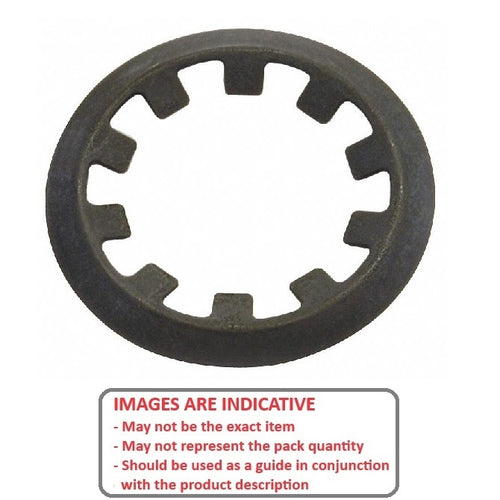

Retaining Rings - Push On - Carbon SteelCarbon Steel Push On Retaining Rings. M1465 / DTX / Seeger ZA and KS.
- An expanded range may be available on special order. Please enquire.
- Thrust load shown is calculated for ideal conditions with mild steel shaft.
- If no thrust load is shown, testing is suggested.
Product Data

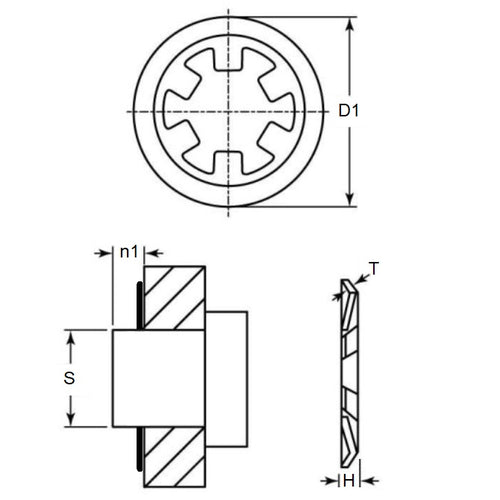

- Min shaft size (s1) : 9.88 mm
- Max Shaft Size (s2) 10.12 mm
- Outside diameter (D1) 16.00 mm
- Min shaft extension (n1) 2.40 mm
- Height (H) Max. 1.20 mm
- Material Thickness (t) 0.30 mm
- Approx. Thrust Load 34 kg
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Huyett® DTX-010
- NoCor® DTX-010
- DTX010
- M14650100APP
- M1465-0100
- M1465-0100APP
