GHK0953-0953-070 - Datasheet

ExaktKey

Category Information

Keys - Gib Head - Steel

Steel Gib Head Keys. Tapered 3.000 mm per 300 mm (1:100)

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nominal Key Height (H1) : 9.525 mm
  • Width (W) 9.525 mm
  • Length (L) 69.9 mm
  • Approx (B) 7.62
  • Material Cold Finished Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Huyett® GIB-0375-2750
  • NoCor® GIB-0375-2750
  • GIB03752750
View full details

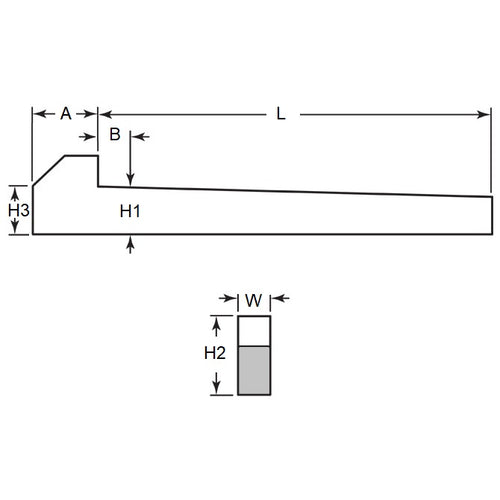

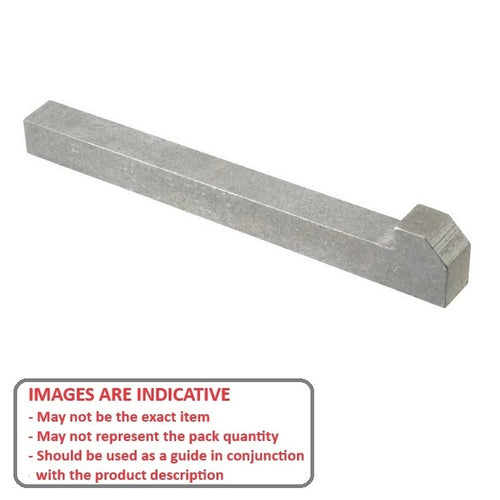

GHK0953-0953-070DiagramGHK0953-0953-070Image
