GHK0953-0953-025 - Datasheet
ExaktKey
Category Information

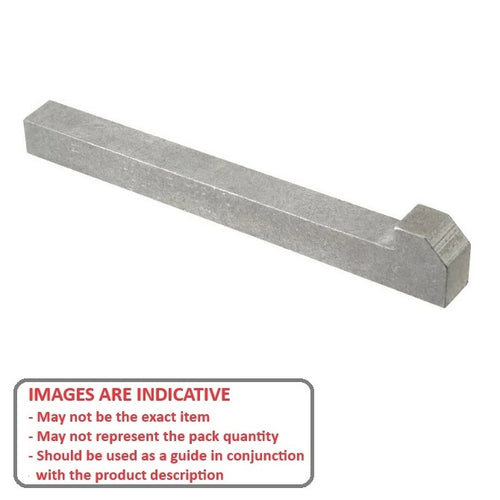

Keys - Gib Head - SteelSteel Gib Head Keys. Tapered 3.000 mm per 300 mm (1:100)
- An expanded range may be available on special order. Please enquire.

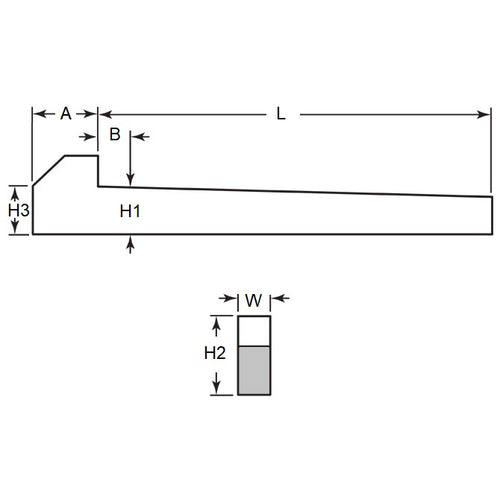

Product Data
- Nominal Key Height (H1) : 9.525 mm
- Width (W) 9.525 mm
- Length (L) 25.4 mm
- Head Height (h2) Approx. 15.9 mm
- Approx (B) 7.62
- Approx (H3) 10.31
- Taper 1:100
- Standard BS46
- Head Length (Approx) (A) 11.113 mm
- Material Cold Finished Steel
Product Compliance and Data
Additional Resources
Cross References
- 98471A169
- Huyett® GIB-0375-1000
- NoCor® GIB-0375-1000
- GIB03751000
