R6-2RS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

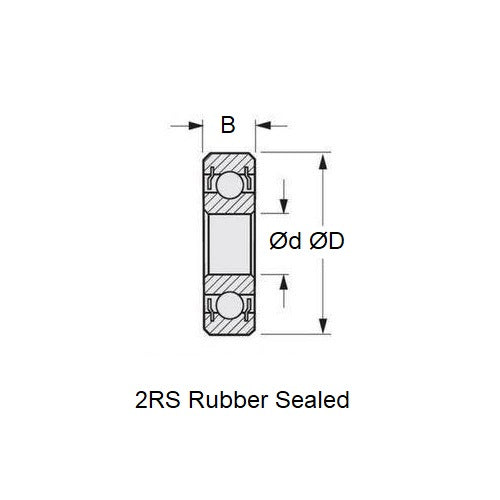

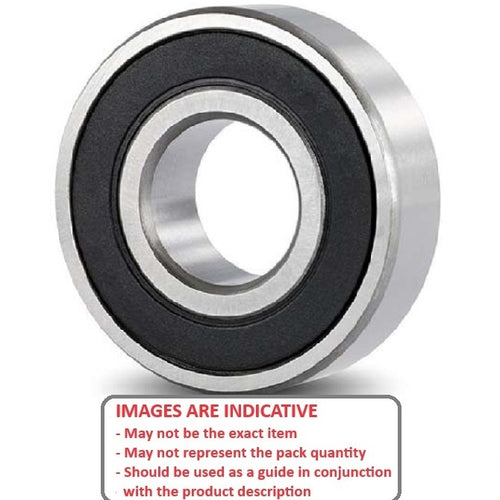

Double black rubber sealed economy bearing with a NON-ISO width
- ID (d) : 9.525 mm
- O.D. (D) 22.225 mm
- Width (B) 5.556 mm
- Precision Grade Economy
- Closure Type 2RS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part R6
- Limiting Speed 20672
- Cage Type Standard
- Static Load Rating KGf 137.8
- Dynamic Load Rating KGf 323
- Radii 0.40 mm
- Inner Shoulder (UI) 12.80mm
- Outer Shoulder (UO) 18.70 mm
- Number of Balls 7
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type 2RS
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- Fox® - 0.15 - Bearing
- Fox® - 15 All Models - Bearing
- Fox® - 36 All Models - Bearing
- Fox® - Eagle IV - 46 - Bearing
- Fox® - MK VII - 60 - Bearing
- Fox® - Quickie - 36 - Bearing
- Fox® - Quickie - 40 - Bearing
- Fox® - Quickie - 74 - Bearing
- Irvine® - Old - 53 - Bearing
- Irvine® - SP ABC - 15 - Bearing
- K.B - 40 All Models - Bearing
- K.B - 7.5 All Models - Bearing
- K.B - DF - 82 - Bearing
- K.B - DF - 91 - Bearing
- K.B - DF Old Pump - 100 - Bearing
- K.B - IB - 11 - Bearing
- K.B - IB - 25 - Bearing
- K.B - IB - 61 - Bearing
- K.B - OB - 21 - Bearing
- K.B - OB - 4.9 - Bearing
- K.B - OB - 40 - Bearing
- K.B - OB New - 7.5 - Bearing
- K.B - Violet - 7.5 - Bearing
- K.B - Violet - 72 - Bearing
- K.B - Violet - 82 - Bearing
- Kraft® - 61 - 67 - Bearing
- Nelson - 45 All Models - Bearing
- Nelson - 65 All Models - Bearing
- Nelson - Combat - 75 - Bearing
- Webra® - 28 All Models - Bearing
- Webra® - 61 FS Speed - 160 - Bearing
- Webra® - Blackhead - 60 - Bearing
- Webra® - DF - 61 - Bearing
- Webra® - Heli - 80 - Bearing
- Webra® - Quickee 500 - 32 - Bearing
- Webra® - RI Speed - 61 - Bearing
- Webra® - Speed - 12 - Bearing
- Webra® - Speed - 120 - Bearing
- Webra® - Speed 61/P5 - 40 - Bearing
- Webra® - Speed GT With TN II - 50 - Bearing
- Webra® - Speed P5 - 40 - Bearing
Cross References
- Sealed R6 / 6
- BOCA® R6-2RS-W.2188
- BOCA® R6N-2RS
- BOCA® R6N-RS
- BOCA® R6-RS-W.2188
- R62RSW2188
- R6N2RS
- R6NRS
- R6RSW2188
- R6 Basic Size Ref
