SLH-0953-1588-06350 - Datasheet
MBA
Category Information

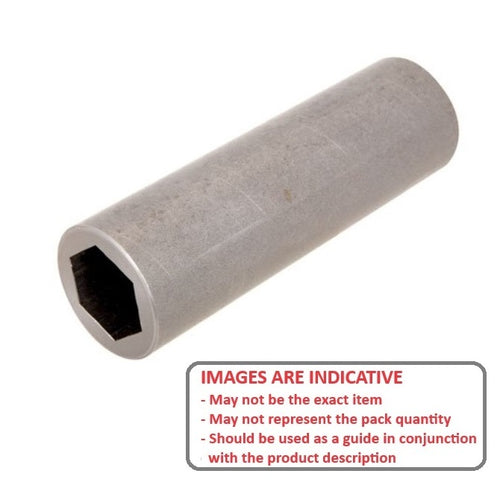

Sleeves - Hex Hole - Carbon SteelCarbon Steel Hex Hole Sleeves. Carefully turned to provide 0.076mm (0.003in) concentricity ID to OD.
- Precisely machined, round outer surface and a uniform, precisely broached hex-shaped hole completely through its center.
Product Data

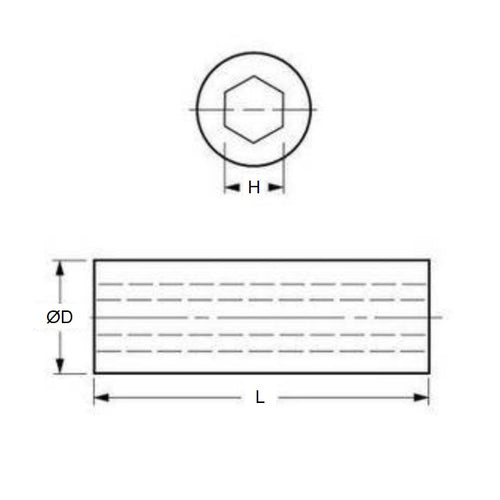

- Nominal Hex Size : 9.525 mm
- Outside Diameter (OD) 15.875 mm
- Length (L) 63.500 mm
- Actual Hex Size (H) 9.601 mm
- Material Carbon Steel 11L17
Product Compliance and Data
Additional Resources
Cross References
- Small Parts 10000140
- Reid Tool® HHS-10
- HHS10
- A7C20-06
- A7C2006
