Miniature Bearings Australia
CCE-00800-S15 - Datasheet
MBA
Category Information

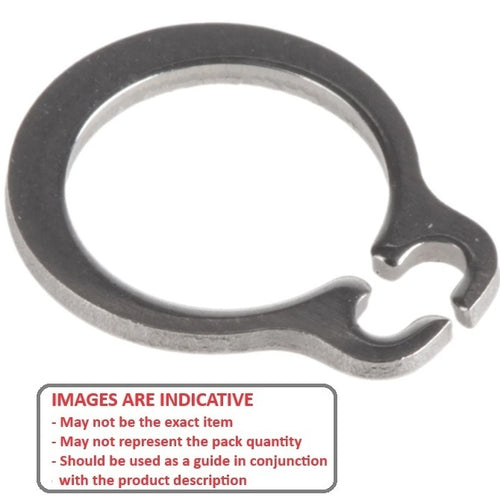

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
Product Data
- Shaft Diameter (Ds) : 8.00 mm
- Clip Thickness (T)
0.80
mm
+ 0.00 / - 0.05
(Equiv. 0.031 in.) - Groove Dia. (Dg)
7.60
mm
+ 0.00 / - 0.06
(Equiv. 0.299 in.) - Approx. Loose Circlip ID (A) 7.40 mm
- Groove Width (W) 0.90 mm
- Clearance on Shaft (C1) 14.70 mm
- Clearance in Groove (C1) 14.00 mm
- Min. Lug Diameter (h) 1.20 mm
- Min. Extension (n) 0.60
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-008-SS
- 90967A120
- Seeger® A-008-SS
- Seeger® A8-411
- Seeger® A8K500-BLS
- Seeger® A8X0.8-411
- Seeger® A8X0.8SS
- Bossard® BN818-008-SS
- Waldes® D1400-008-SS
- Huyett® DSH-008-SS
- NoCor® DSH-008-SS
- Rotor Clip® DSH-008-SS
- Seeger® NZT.A8-411
- BN818008SS
- A008SS
- D14000080KSF
- D1400-0080KSF
- D1400008SS
- NZTA8411
- 471008SS
- DSH008SS
- A8X08411
- A8K500BLS
