Category Information

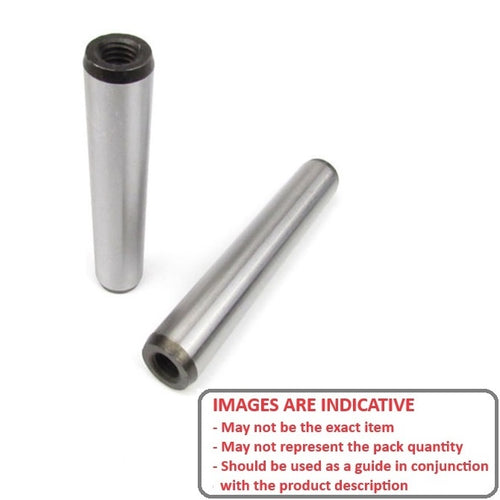

Pins - Taper Metric - Extractable - Internal ThreadInternal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded internally for easy extraction.
- An expanded range may be available on special order. Please enquire.
- DIN 7978.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

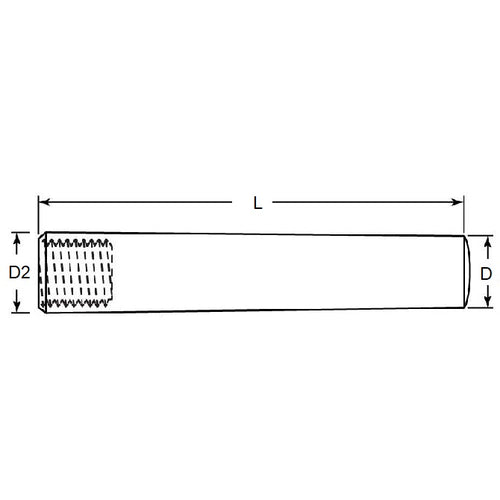

- Nom. Small End Diameter (D) : 8.00 mm
- Length (L) 50.00 mm
- Nom. Large End Diameter (D2) 9.00 mm
- Thread Size M5 (5x0.8mm)
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor® TPTMI-080-050
- TPM080005000EX
- TPTMI080050
- TPX8-50
- TPX850
