698-ZZ-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

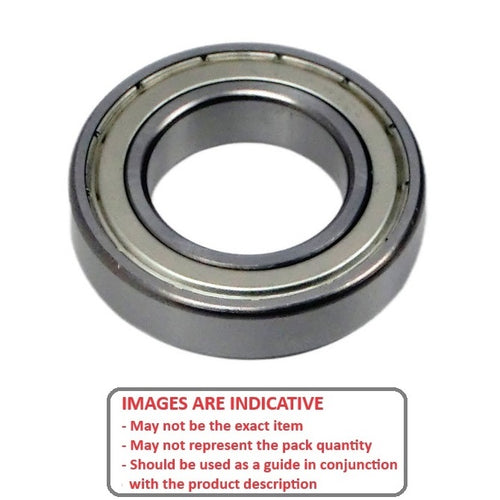

Double shielded standard bearing

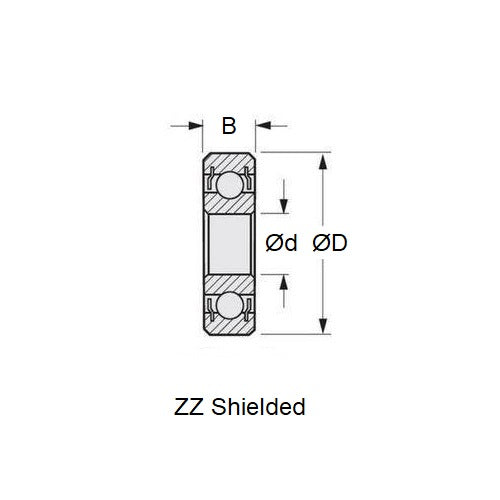

- ID (d)
:
8.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.315 in.) - O.D. (D)
19.000
mm
+ 0.000 / - 0.010
(Equiv. 0.748 in.) - Width (B)
6.000
mm
+ 0.000 / - 0.125
(Equiv. 0.236 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 698
- Limiting Speed 36000
- Cage Type Ribbon
- Static Load Rating KGf 94
- Dynamic Load Rating KGf 228
- Radii 0.30 mm
- Inner Shoulder (UI) 9.80mm
- Outer Shoulder (UO) 16.66 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- Cyclone® - FA1F1C - 15 - Bearing
- Cyclone® - PR - 61 - Bearing
- Enya® - 2C - Bearing
- GMS - 25 ABC - 45 - Bearing
- GMS - 32 ABC - 12 - Bearing
- GMS - 40 ABC - 25 - Bearing
- GMS - 47 ABC - 32 - Bearing
- Magnum Power® - XL 30 RFS - 75 - Bearing
- Magnum Power® - XL30 - 80 - Bearing
- MVVS - 15 All Models - Bearing
- Nelson - 15 All Models - Bearing
- Nelson - 40 - Bearing
- Nelson - 45 - 12 - Bearing
- Nelson - Quickie - 75 - Bearing
- OS Engines® - 20 4-C - Front Bearing
- OS Engines® - FS 26 Surpass RC 4C - 80 - Bearing
- OS Engines® - FS 4C - 26 - Bearing
- OS Engines® - FS Surpass RC 4C - 12 - Bearing
- OS Engines® - FS26S - 4 Stroke - Front Bearing
- OS Engines® - FS40 - 120 - Bearing
- OS Engines® - FS40 - 4 Stroke - Camshaft Bearing
- OS Engines® - FS40-M - 4 Stroke - Camshaft Bearing
- OS Engines® - FS40S - 4 Stroke - Front Bearing
- OS Engines® - RC 4C - 40 - Bearing
- OS Engines® - RF-B - 61 - Bearing
- Picco® - 40 All Models - Bearing
- Picco® - 61 - 2 Stroke - Front Bearing
- Rossi® - 3 and 2 - 3.5 - Bearing
- Rossi® - 45 All Models - Bearing
- Rossi® - 53 Glow Engine - 60 - Bearing
- Rossi® - Air - 53 - Bearing
- Rossi® - F1 RC - 21 C - Bearing
- Rossi® - F140 - 81 - Bearing
- Rossi® - F3D Pylon - 81 - Bearing
- Rossi® - Marine - 40 - Bearing
- Rossi® - R40T - 21 - Bearing
- Saito® - 4C - 100 - Bearing
- Saito® - 4C - 160 - Bearing
- Saito® - 4C - 40 - Bearing
- Saito® - 4C Old - 56 - Bearing
- Saito® - 90 - Bearing
- Saito® - FA 150 - Bearing
- Saito® - FA 300T - Bearing
- Saito® - FA 30S - 91 - Replacement Front Bearing
- Saito® - FA 56 - 125 - Replacement Front Bearing
- Saito® - GK - 100 - Bearing
- Saito® - Mark II - 182 - Bearing
- Saito® - Mark II - 56 - Bearing
- Saito® - Quickie - 120 - Bearing
- Saito® - Quickie - 40 - Bearing
- Saito® - Quickie - 45 - Bearing
- Saito® - S - 45 - Bearing
- Stalker® - Pro - 21 - Bearing
- Thunder Tiger® - 21 O-B - 2 Stroke - Bearing for Crankshaft Adaptor Plate
- Tower® - 21 - Bearing
- YS - FZ - 60 - Bearing
Cross References
- KALT 10020126
- HIROBO 2500-042
- HIROBO 2500-080
- SKF 619-8-2Z
- WIB 619-8-2Z
- SKF 619-8-Z
- WIB 619-8-Z
- GRW 698-2Z
- ISO 698ZZ
- ISO 698-ZZ
- NTN® 698-ZZ
- ADR AY8-ZZ
- MPB UL80CHH
- R1980KK
- R1980-KK
- 2500042
- 2500080
- 6982Z
- 698ZZMC3
- 698-ZZMC3
- 698SS
- 61982Z
- 6198Z
- AY8ZZ
- 698 Basic Size Ref
