Miniature Bearings Australia
698-Z-MC45-Y-AF12 - Datasheet
MBA
Category Information

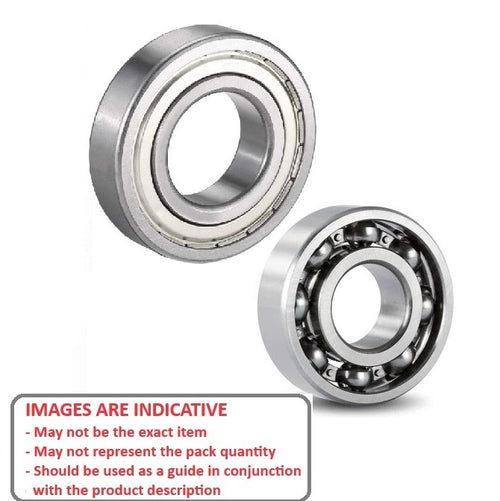

Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Deleted Item. Available while stocks last. Single shielded bearing with light brass retainer
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

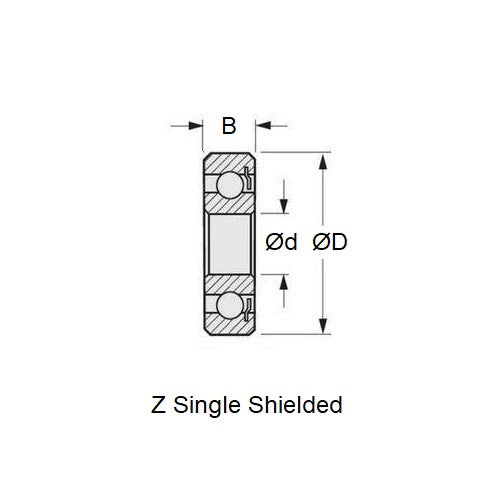

- ID (d)
:
8.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.315 in.) - O.D. (D)
19.000
mm
+ 0.000 / - 0.010
(Equiv. 0.748 in.) - Width (B)
6.000
mm
+ 0.000 / - 0.125
(Equiv. 0.236 in.) - Precision Grade Abec 1
- Closure Type Z
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Oil
- Lubrication Name AF12 Aeroshell Fluid 12
- Basic Part 698
- Limiting Speed 43000
- Cage Type Brass Ribbon
- Static Load Rating KGf 94
- Dynamic Load Rating KGf 228
- Radii 0.30 mm
- Inner Shoulder (UI) 9.80mm
- Outer Shoulder (UO) 16.66 mm
- Number of Balls 7
- Clearance C823 (8 to 23)
- Precision Grade Abec 1
- Closure Type Z
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- Enya® - 46 - 2 Stroke - Front Bearing
- Enya® - 46 - 4 Stroke Old - Front Bearing
- OS Engines® - FS26S - 4 Stroke - Front Bearing
- OS Engines® - FS40S - 4 Stroke - Front Bearing
- Picco® - 61 - 2 Stroke - Front Bearing
Cross References
- WIB 619/8-Z-Y-C3-AF2
- WIB 619-8-Z-Y-C3-AF2
- 698
- 698YZC823AF12
- 619/8ZYC3AF2
- 6198ZYC3AF2
- 698 Basic Size Ref
