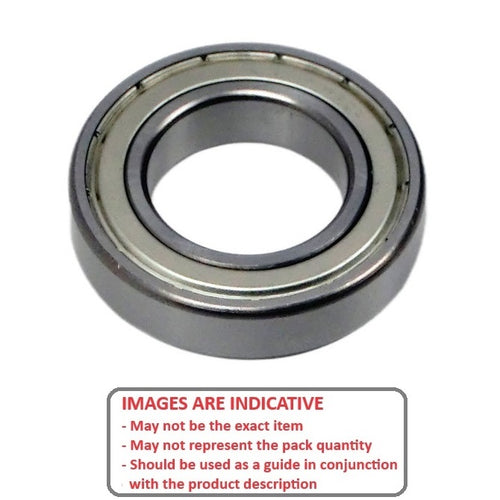

688A-CSN-ZZS-ACO-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid

Ceramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Bearings with steel races and ceramic balls.
For standard bearings, the balls are usually one of the first components to show wear.
Ceramic balls are harder than steel and do not wear as easily.
Items with high speed cages have the suffixes T9H, TNH, TW or KC

Product Data

Deleted Item. Available while stocks last. Double shielded ceramic-hybrid bearing with light anti-rust lubricant

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

ID (d) : 8.000 mm
O.D. (D) 16.000 mm
Width (B) 5.000 mm
Precision Grade Economy
Closure Type ZZS
Bearing Type Radial
Material Chrome Steel SAE 52100 - Ceramic Si3N4 Balls

Lubrication Type Oil
Lubrication Name ACO Anti Corrosion Oil Film
Basic Part 688A
Limiting Speed 40850
Cage Type Standard
Static Load Rating KGf 45.6
Dynamic Load Rating KGf 97.3
Radii 0.20 mm
Inner Shoulder (UI) 9.65mm
Outer Shoulder (UO) 14.20 mm
Number of Balls 10
Clearance ECO (5 to 23)
Precision Grade ECO
Closure Type ZZS
Max Temperature 170 Deg. C

Country of Origin: US

Product Compliance and Data

Additional Resources

Applications & Uses

RC Car Parts
RC Nitro Engine Parts
CEN - Genesis 46 RTR Chasis 1/8 Scale - Bearing
CEN - Matrix - Bearing
Duratrax® - Quake Nitro - Bearing
Duratrax® - Thunder Quake - Bearing
GS General Silicone - Storm Pro Gas - Bearing
GS General Silicone - Storm RTR - Bearing
GS General Silicone - Storm Unlimited Truck SUT-RTR - Bearing
Hobao® - Hyper 8 - Bearing
Hobao® - Hyper E ST Truggy - Bearing
Hot Bodies® - Lightning 2 - Bearing
Hot Bodies® - Lightning 2 Pro - Bearing
Hot Bodies® - Lightning 2 RR - Bearing
Hot Bodies® - Lightning Pro With O Radio - Bearing
Hot Bodies® - Lightning RR Truggy RTR 1/10 - Bearing
Hot Bodies® - Lightning Stadium Pro - Bearing
Hot Bodies® - Lightning Stadium RTR - Bearing
Hot Bodies® - Lightning Street 1/7 RTR - Bearing
HPI - E Savage - Bearing
HPI - Hellfire - Bearing
HPI - Savage 25 and RTR - Bearing
HPI - Savage and SavageX - Bearing
HPI - Savage SS - Bearing
HPI - Savage XSS - Bearing
Kyosho® - Burns - Bearing
Kyosho® - Burns DX - Bearing
Kyosho® - Crusher - Bearing
Kyosho® - Inferno Gas - Bearing
Kyosho® - Inferno ST-R - Bearing
Kyosho® - Inferno Truggy - Bearing
Kyosho® - Landmark Upgrade - Bearing
Kyosho® - Mad Armour - Bearing
Kyosho® - Mad Force RTR - Bearing
Kyosho® - MP 7.5 - Bearing
Kyosho® - MP 7.5 Kanai 2 Inferno - Bearing
Kyosho® - MP 7.5 Kanai 2 Pro-Sports - Bearing
Kyosho® - MP 7.5 Kanai 3 Inferno - Bearing
Kyosho® - MP 7.5 Kanai Inferno - Bearing
Kyosho® - MP 7.5 Sports Inferno - Bearing
Kyosho® - MP 777 Inferno - Bearing
Kyosho® - MP 777 SP1 Inferno - Bearing
Kyosho® - MP 777 SP2 - Bearing
Kyosho® - MP 777 ST-R Truggy - Bearing
Kyosho® - MP-5 - Bearing
Kyosho® - MP-6 International - Bearing
Kyosho® - Twin Force -Motor Truck - Bearing
Kyosho® - USA 1 Nitro - Bearing
Kyosho® - USA-1 Gas - Bearing
Lauterbach® - Sprint - Bearing
MSR - X5T - Bearing
Mugen® - Athlete - Bearing
Ofna® - 9.5 Pro - Bearing
Ofna® - 9.5 Violator RTR - Bearing
Ofna® - Dominator - Bearing
Ofna® - Hyper 7 Pro - Bearing
Ofna® - Hyper 8 - Bearing
Ofna® - Hyper PBS - Bearing
Ofna® - Hyper PCR - Bearing
Ofna® - Jammin - Bearing
Ofna® - Jammin 1 CR - Bearing
Ofna® - Jammin 1 CR With Steering - Bearing
Ofna® - MBX - Bearing
Ofna® - Mutilator - Bearing
Ofna® - Pirate 10 RTR With .12 Engine G - Bearing
Ofna® - Ravager - Bearing
Ofna® - Titan Deluxe - Bearing
Ofna® - Titan Twin - Bearing
Ofna® - Ultra LX COMP RTR - Bearing
Schumaker® - Boss Cat - Works Edition - Bearing
Schumaker® - Boss Cat 4WD - Bearing
Schumaker® - Cat - Bearing
Schumaker® - Cougar Works - Bearing
Schumaker® - Ford Sierra RS - Bearing
Schumaker® - Pro Cat - Bearing
Schumaker® - RS Cosworth 4X4 - Bearing
Schumaker® - Shotgun - Bearing
Schumaker® - XLS Cat - Bearing
Serpent® - 9000 - Bearing
Sport Werks® - Mayhem Pro - Bearing
Sport Werks® - Mayhem RTR - Bearing
Tamiya® - Madcap - Bearing
Team Associated® - MGT4.60SE - Bearing
Team Associated® - Monster GT Truck and RTR Nitro Off Road - Bearing
Team Losi® - LST Super Truck LOSB0010 - Bearing
Team Losi® - Muggy - Bearing
Thunder Tiger® - EB4 - Bearing
Thunder Tiger® - EB4 S2 RTR - Bearing
Thunder Tiger® - EB4-S3 - Bearing
Thunder Tiger® - Mirage - Bearing
Thunder Tiger® - Mirage 1/8 Scale Gas - Bearing
Thunder Tiger® - ST1 - Bearing
Thunder Tiger® - TTRS3 - Bearing
Thunder Tiger® - V-Spec 1/8 Scale Gas - Bearing
Thunder Tiger® - V-Spec Sealed - Bearing
Traxxas® - Revo - Bearing
Traxxas® - Sledgehammer - Bearing
Xray® - XB8 Nitro - Bearing
Xray® - XB8R - Bearing
Xray® - XB8-TQ - Bearing
XTM Racing - Mammoth Massive Appeal RTR - Bearing
XTM Racing - Nitro Mammoth RTR - Bearing
XTM Racing - X Factor I and 2 - Bearing
XTM Racing - X Factor I and 2 With Clutch - Bearing
Enya® - 11 CX - Replacement Front Bearing

Cross References

Shielded Width A 688/5
Shielded 688A / 5
ISO 688CZZAF2
ISO 688C-ZZ-AF2
688CZAF2
688C-Z-AF2
688A Basic Size Ref

View full details

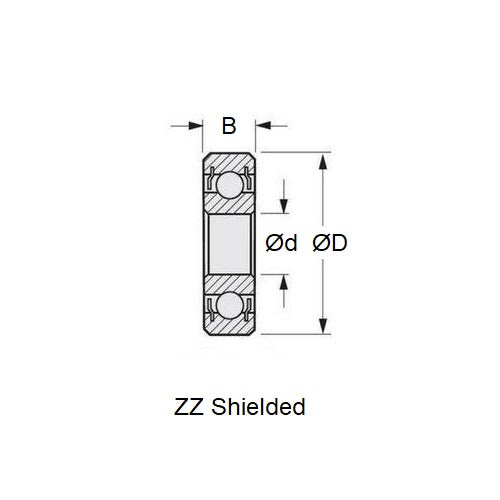

688A-CSN-ZZS-ACO-ECODiagram
