Miniature Bearings Australia
688-MC3-AF12 - Datasheet
MBA
Category Information

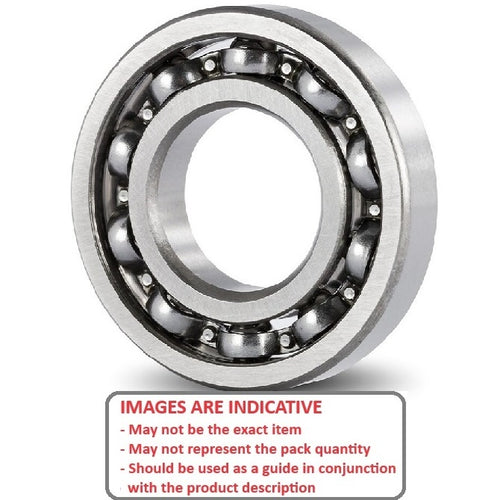

Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Open standard bearing with low-torque light oil lubricant

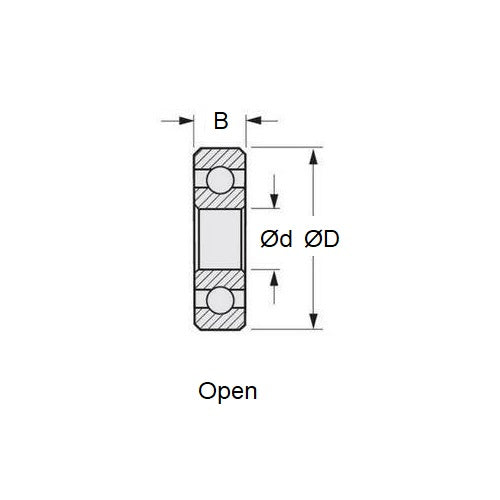

- ID (d)
:
8.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.315 in.) - O.D. (D)
16.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.63 in.) - Width (B)
4.000
mm
+ 0.000 / - 0.125
(Equiv. 0.157 in.) - Precision Grade Abec 1
- Closure Type Open
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Oil
- Lubrication Name AF12 Aeroshell Fluid 12
- Basic Part 688
- Limiting Speed 43000
- Cage Type Ribbon
- Static Load Rating KGf 60
- Dynamic Load Rating KGf 128
- Radii 0.20 mm
- Inner Shoulder (UI) 10.50mm
- Outer Shoulder (UO) 13.50 mm
- Number of Balls 10
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Helicopter Parts
- RC Nitro Engine Parts
- Kalt® - EnForcer ZR - 31002 Assy Bearing 8-16-4mm
- Kalt® - EnForcer ZR - 31008 Assy Bearing 8-16-4mm
- Kalt® - EnForcer ZX - Bearing
- Cyclone® - 61 All Models - Bearing
- Enya® - 09 IV - Replacement Rear Bearing
- Enya® - 2C - Cam Shaft Bearing
- Enya® - 46 - 4 Stroke New - Camshaft Bearing
- Enya® - 46 - 4 Stroke Old - Camshaft Bearing
- Enya® - 4C - 35 - Cam Shaft Bearing
- Enya® - 4C Cam Shaft - 90 - Cam Shaft Bearing
- Enya® - 4CII - 40 - Cam Shaft Bearing
- Enya® - 53 - 4 Stroke - Camshaft Bearing
- Enya® - 53 4C - 50 - Cam Shaft Bearing
- Moki® - C - 120 - Bearing
- Norvel® - 15 All Models - Bearing
- Russian® - KC - 46 - Bearing
Cross References
- SKF 618-8
- WIB 618-8
- GRW 688
- NTN® 688
- NTN® 688A
- FAG® MR8016
- RMB® UL816
- NTN® W688
- ADR X8
- L1680
- 6188
- 688AF2
- 688-AF2
- 688 Basic Size Ref
