PSP-080-016-C - Datasheet
MBA
Category Information

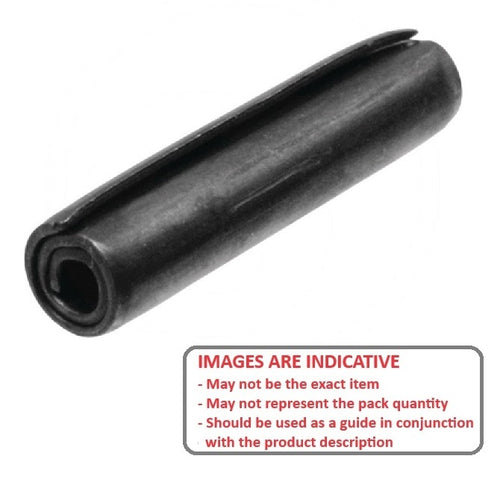

Pins - Coiled - Steel - Standard DutyStandard Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8750 Standard Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data

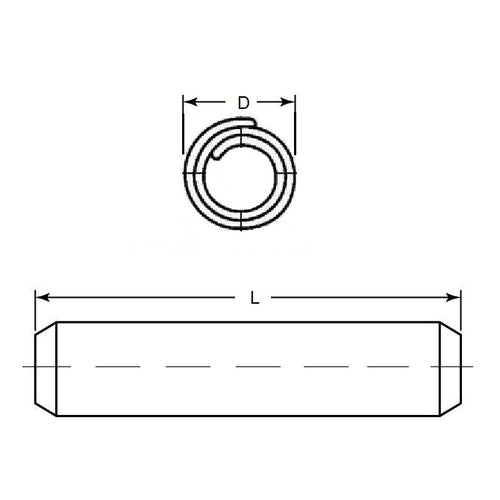

- Nominal Hole Diameter : 8.00 mm
- Length
16.00
mm
+/- 0.50
(Equiv. 0.63 in.) - Drill Size 8.00 - 8.15 mm
- Loose Diameter 8.30 - 8.63 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness RC 46-53 (HV 420 to 545)
- Double Shear Strength Min. 22 Kn
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Huyett® SPCM-080-016
- NoCor® SPCM-080-016
- SEP816
- SEP8-16
- SPCM080016
