CCI-08500-C - Datasheet
MBA
Category Information

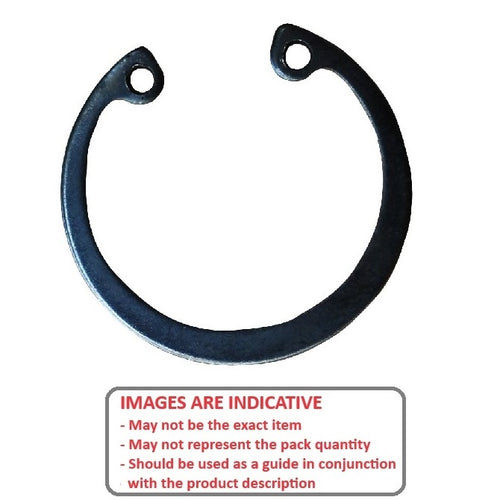

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data

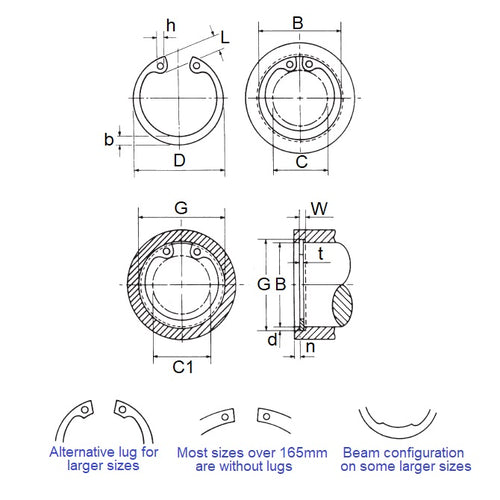

- Housing Bore (B) : 85.00 mm
- Clip Thickness (T)
3.00
mm
+ 0.00 / - 0.08
(Equiv. 0.118 in.) - Groove Dia. (Dg)
88.50
mm
+ 0.35 / - 0.00
(Equiv. 3.484 in.) - Approx. Loose Circlip OD (Dr) 90.50 mm + 1.30 / - 0.54
- Groove Width (W) 3.15 mm + 0.13 / - 0.00
- Clearance in Bore (C) 66.90 mm
- Clearance in Groove (C1) 71.30 mm
- Min. Lug Diameter (h) 3.50 mm
- Min. Extension (n) 5.30
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 472-085
- 98455A153
- Bossard® BN-822-085
- Waldes® D1300-085
- Huyett® DHO-085
- NoCor® DHO-085
- Rotor Clip® DHO-085
- Seeger® J-085
- Seeger® J85
- Seeger® J85-S
- Seeger® J85X3
- Seeger® NZT.J85
- BN822085
- J085
- J85S
- D1300085
- DHO085
- D1300-0850APP
- D13000850APP
- 472085
