Miniature Bearings Australia
NT042C-NI-CS - Datasheet
MBA
Category Information

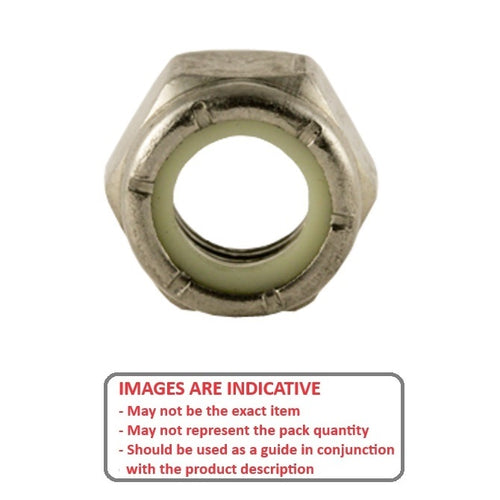

Nuts - Hexagonal - Nylon Insert - SteelSteel Nylon Insert Hexagonal Nuts. Nylon Insert for Locking. NylocTM and other brands.
- An expanded range may be available on special order. Please enquire.

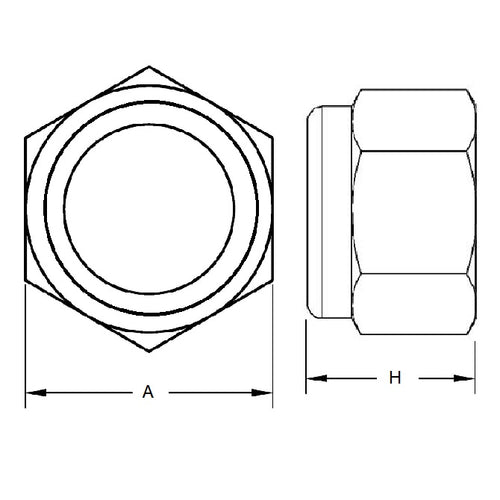

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : 8-32 UNC (4.17mm)
- Thickness (H) 5.9 mm
- Across Flats (A/F) 8.7 mm
- 5.9
- Type Standard
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Steel - Plated
Product Compliance and Data
Additional Resources
Cross References
- 90631A009
- MicroFast® NI0832
- Reid Tool® ROC-NIN-050
- ROCNIN050
