PFL-025T-014-A - Datasheet
MBA
Category Information

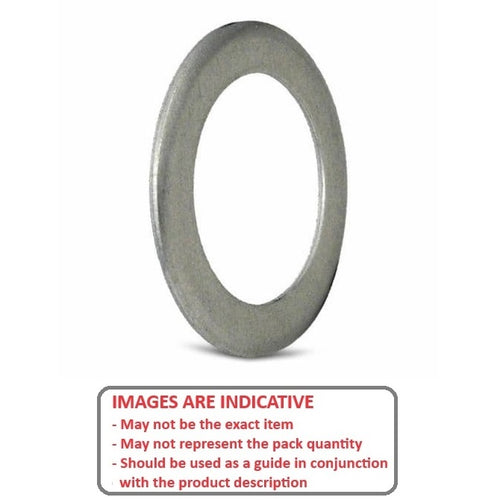

Pulley Flanges - Timing - Suit 2.500mm T2.5 SeriesSuit 2.500mm T2.5 Series Timing Pulley Flanges. Use with timing pulley stock to custom make your own pulleys
- Timing pulley flanges are available in aluminium and carbon steel, and suit the timing pulley stock sizes listed on this site.
- These flanges provide a quick low cost way to cap the sides of special size timing pulleys made from stock lengths, without having to machine special flanges in the design.

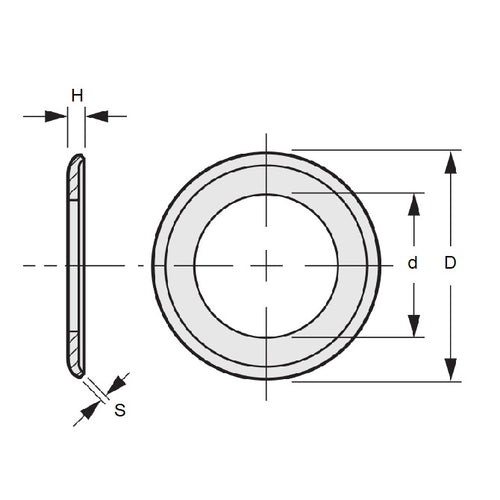

Product Data
- Inside Diameter (d) : 8.180 mm
- Outside Diameter (D) 15.00 mm
- Suits Pulley Grooves 14 No.
- Width (H) 1.14 mm
- Thickness (S) 0.64 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates® 14-T2.5-FA
- A6A31M014FA
- 14T25FA
