BFM-8M-NN - Datasheet
MBA
Category Information

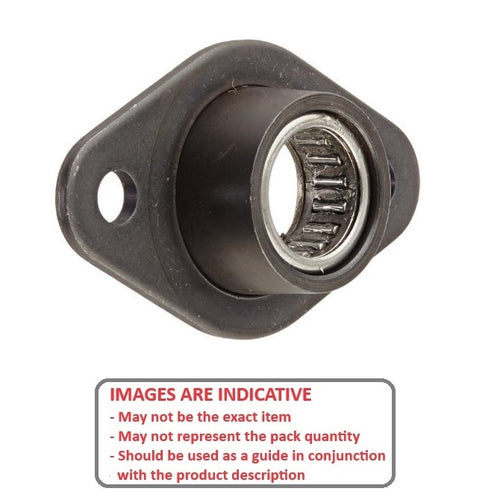

Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - Needle RollerNeedle Roller Rigid Flanged 2 Bolt Housing and Bearing Assembly. Low profile flange mounted needle roller bearings
- Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
- Flanged mounting allows for a shaft to run through a bulkhead to which the housing is mounted, or to have a shaft mounted perpendicular to a metal frame.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Shaft Size : 8.000 mm
- Width (W) 53.00 mm
- Overall Length (A) 16.70 mm
- Overall Height (E) 30.30 mm
- Min to Max Shaft Dia. 7.991 to 8.000 mm
- Max. Radial Dynamic Load 2750 N
- Bolt Hole Centres (L) 38.9 mm
- Max Speed 28000
- Material Steel
