CCI-07500-C - Datasheet
MBA
Category Information

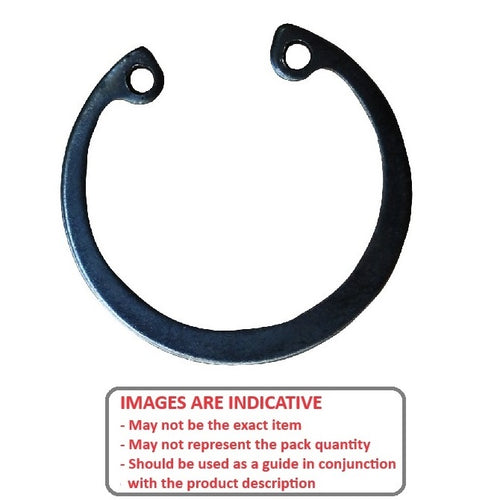

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.

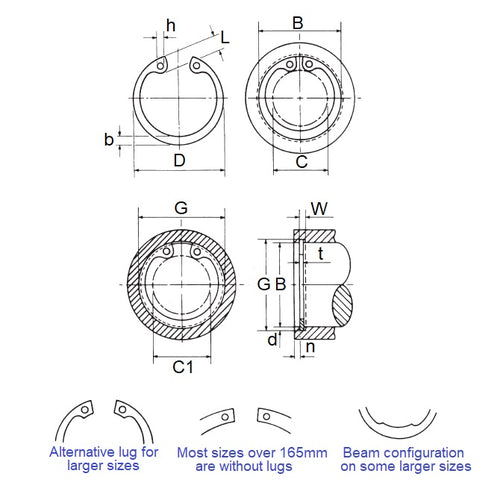

Product Data
- Housing Bore (B) : 75.00 mm
- Clip Thickness (T)
2.50
mm
+ 0.00 / - 0.07
(Equiv. 0.098 in.) - Groove Dia. (Dg)
78.00
mm
+ 0.30 / - 0.00
(Equiv. 3.071 in.) - Approx. Loose Circlip OD (Dr) 79.50 mm + 1.10 / - 0.46
- Groove Width (W) 2.65 mm + 0.13 / - 0.00
- Clearance in Bore (C) 58.60 mm
- Clearance in Groove (C1) 62.40 mm
- Min. Lug Diameter (h) 3.00 mm
- Min. Extension (n) 4.50
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 472-075
- 98455A150
- Bossard® BN-822-075
- Waldes® D1300-075
- Huyett® DHO-075
- NoCor® DHO-075
- Rotor Clip® DHO-075
- Seeger® J-075
- Seeger® J75
- Seeger® J75-S
- Seeger® J75X2.5
- Seeger® NZT.J75
- BN822075
- J075
- J75S
- D1300-0750
- D13000750APP
- D1300-0750APP
- DHO075
- 472075
