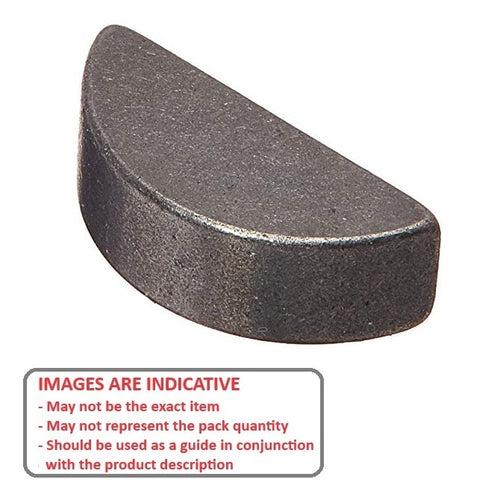

KW-079-162-374-C - Datasheet
ExaktKey
Category Information
Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
7.94
mm
+/- 0.025
(Equiv. 0.313 in.) - Approx. Height (H)
16.2
mm
+/- 0.250
(Equiv. 0.638 in.) - Approx. Length (L) 37.44 mm
- Basis Diameter (D) 38.10 mm
- Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- ANSI 1012
- 98481A260
- Key Size 25
- Huyett® WKC-025
- NoCor® WKC025
- KW079381C
