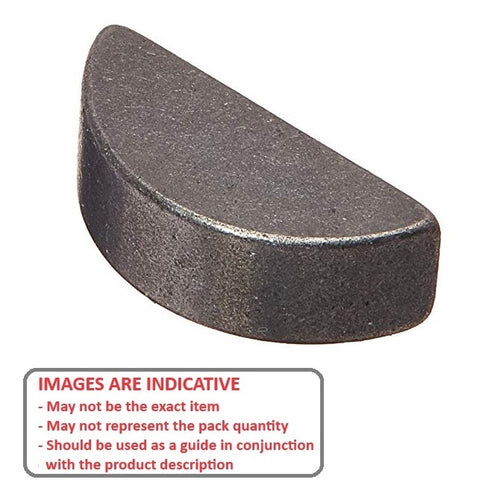

KW-079-110-249-C - Datasheet
ExaktKey
Category Information
Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
7.94
mm
+/- 0.025
(Equiv. 0.313 in.) - Approx. Height (H)
11.0
mm
+/- 0.250
(Equiv. 0.433 in.) - Approx. Length (L) 24.94 mm
- Basis Diameter (D) 25.40 mm
- Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- ANSI 1008
- 98481A175
- Key Size B
- NoCor® WK15
- Reid Tool® WK-15
- Huyett® WKC-00B
- NoCor® WKC00B
- KW079254C
