GHK0794-0794-076 - Datasheet
ExaktKey
Category Information

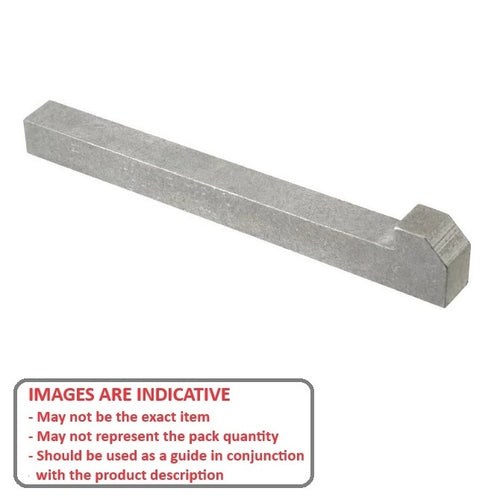

Keys - Gib Head - SteelSteel Gib Head Keys. Tapered 3.000 mm per 300 mm (1:100)
- An expanded range may be available on special order. Please enquire.

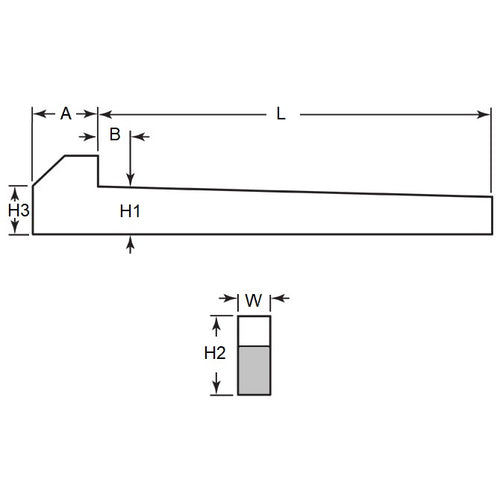

Product Data
- Nominal Key Height (H1) : 7.938 mm
- Width (W) 7.938 mm
- Length (L) 76.2 mm
- Head Height (h2) Approx. 12.7 mm
- Approx (B) 7.62
- Approx (H3) 8.73
- Taper 1:100
- Standard BS46
- Head Length (Approx) (A) 9.53 mm
- Material Cold Finished Steel
Product Compliance and Data
Additional Resources
Cross References
- 98471A144
- Huyett® GIB-0312-3000
- NoCor® GIB-0312-3000
- MAK-A-KEY® JMEDG3X516
- GIB03123000
