REM-079-R-CB - Datasheet
MBA
Category Information

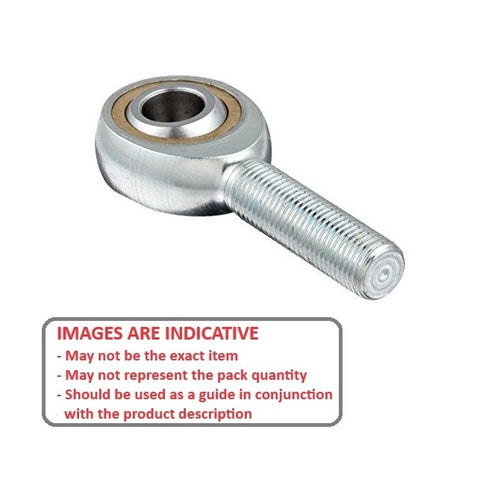

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data

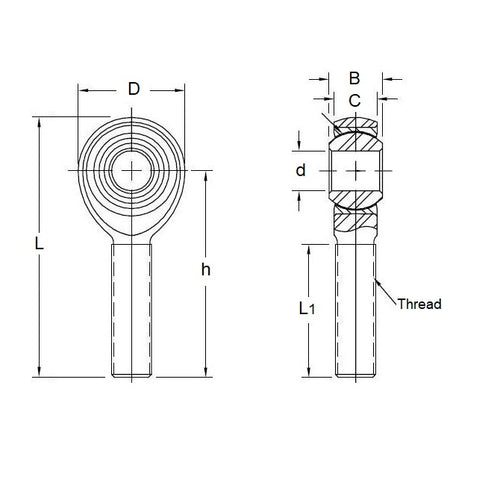

- Eye Size (d1) : 7.938 mm
- Overall Length (L) 58.72 mm
- Thread Size 5/16-24 UNF Right
- Min. Thread Length (l2) 31.75 mm
- Head Width (W) 8.74 mm
- Eye Width (W1) 11.10 mm
- Head Diameter (D) 22.23 mm
- Centre Height (l1) 47.63 mm
- Grease Nipple Yes
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- 6072K63-RIGHT
- ASAHI® JAMB5
- KWK KMB5
- IKO POSB5
- Nachi® POSB-5
- NTN® SMI-B5
- SMIB5
- 6072K63RIGHT
