HF2-312-B - Datasheet
MBA
Category Information

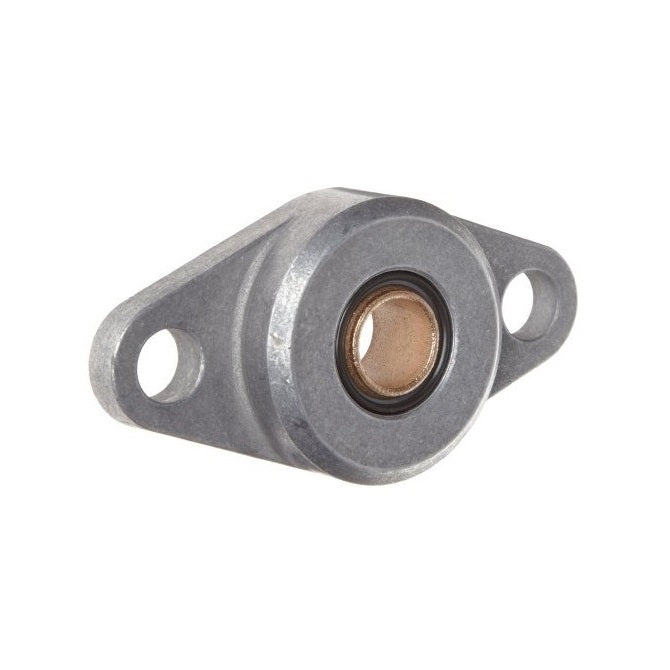

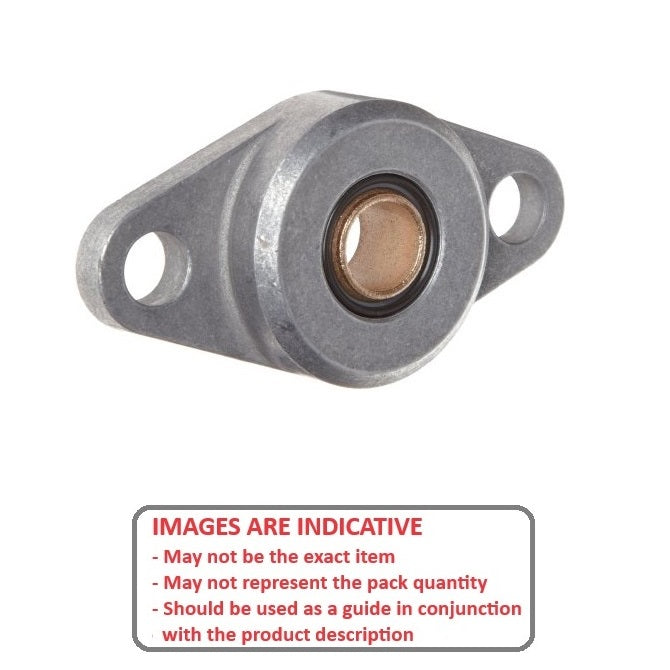

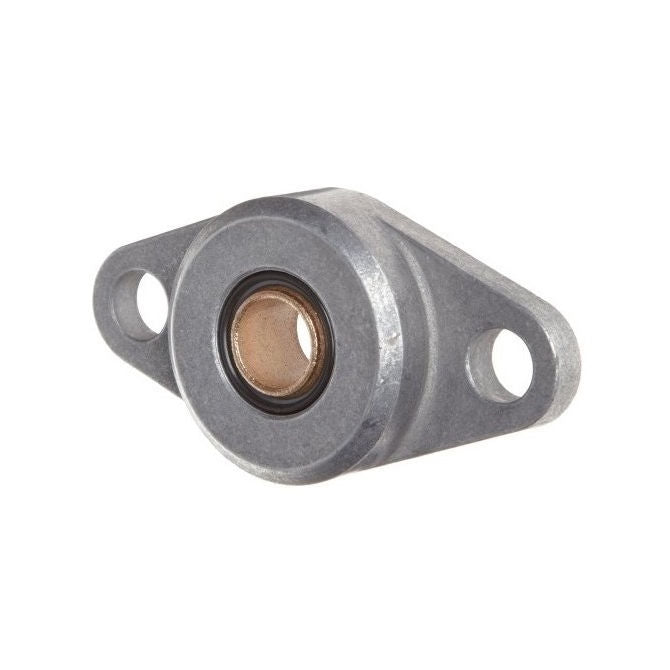

Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - BronzeBronze Aligning Flanged 2 Bolt Housing and Bearing Assembly. Spyraflo robust light weight aluminium housing with self aligning bronze bearings.
- Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
- Flanged mounting allows for a shaft to run through a bulkhead to which the housing is mounted, or to have a shaft mounted perpendicular to a metal frame.
- +/- 5% Static Alignment
- Sintered aluminium housing
- Corrosion Resistant
- Light weight
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

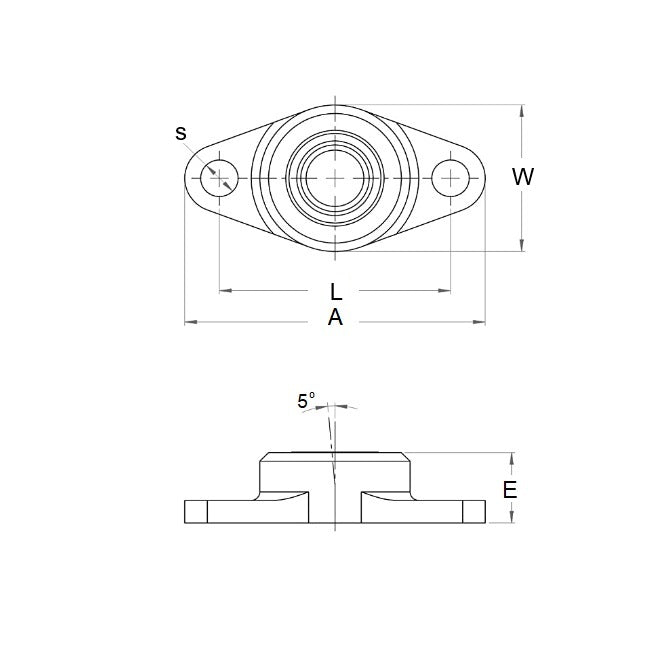

- Nominal Shaft Size : 7.938 mm
- Width (W) 44.45 mm
- Overall Length (A) 57.15 mm
- Overall Height (E) 28.70 mm
- Min to Max Shaft Dia. 7.958 to 7.978 mm
- Max. Radial Dynamic Load 1201 N
- Bolt Hole Centres (L) 11.18 mm
- Max Speed 12240
- Material Bronze SAE 840 Sintered
