RP060-0300-420 - Datasheet
MBA
Category Information

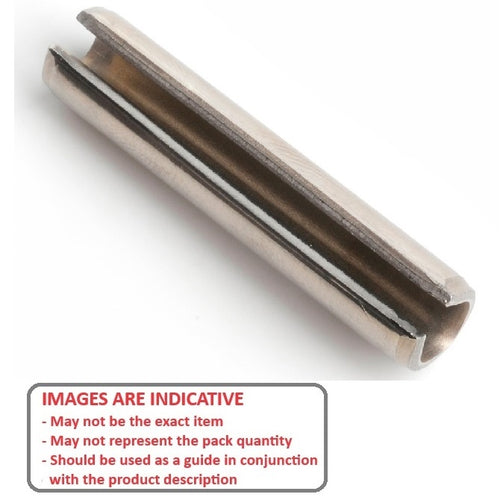

Pins - Roll - Stainless Steel - 420 Grade420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 6.00 mm
- Length (L) 30.00 mm
- Free Diameter 6.60 mm
- Thickness (S) 1.20 mm
- Chamfer Length (cL) 0.40-1.60 mm
- Chamfer Diameter (cD) 5.8 mm
- Standard ASME B18.8.4M Type B
- Type Standard
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- Huyett® SPMSP-060-030-A
- NoCor® SPMSP-060-030-A
- SPMSP060030A
