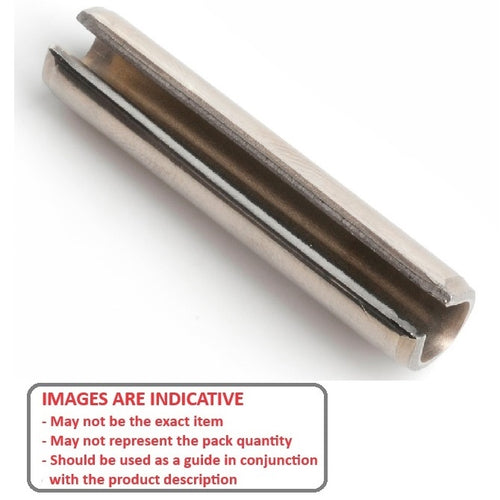

RP060-0240-4 - Datasheet
MBA
Category Information
Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 6.00 mm
- Length (L) 24.00 mm
- Free Diameter 6.60 mm
- Thickness (S) 1.20 mm
- Chamfer Length (cL) 1.20-1.40 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91610A711
- Huyett® SPM3-060-024-I
- NoCor® SPMS-060-024-304SS
- SRP6-24
- SRP624
- SPMS060024304SS
