Miniature Bearings Australia
RP060-0200-C - Datasheet
MBA
Category Information

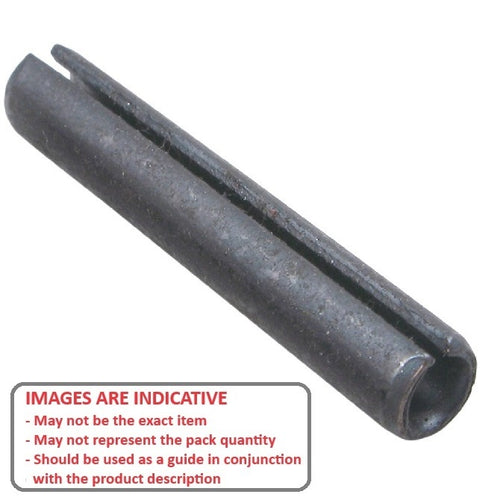

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins

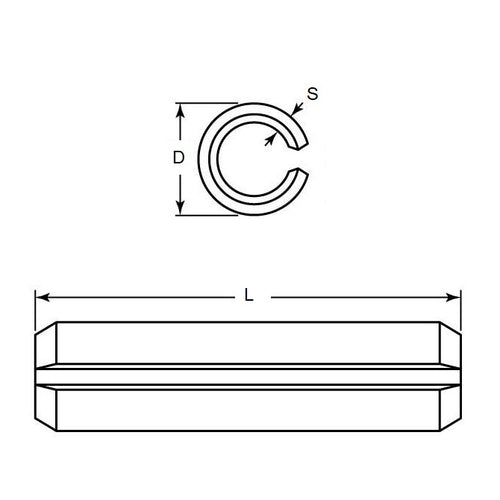

Product Data
- Nominal Diameter (D) : 6.00 mm
- Length (L) 20.00 mm
- Free Diameter 6.60 mm
- Thickness (S) 1.20 mm
- Chamfer Length (cL) 1.20-1.40 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 802405
- 91611A405
- NoCor® SPM-060-020
- Seeger® SPM060020ASF
- Huyett® SPM-060-020-I
- NoCor® SPM-060-020-I
- SAP620
- SAP6-20
- SPM060020I
