Miniature Bearings Australia
686B-ZZ-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

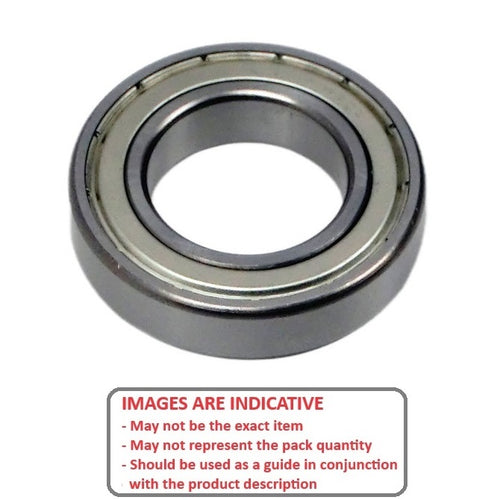

Double shielded economy bearing

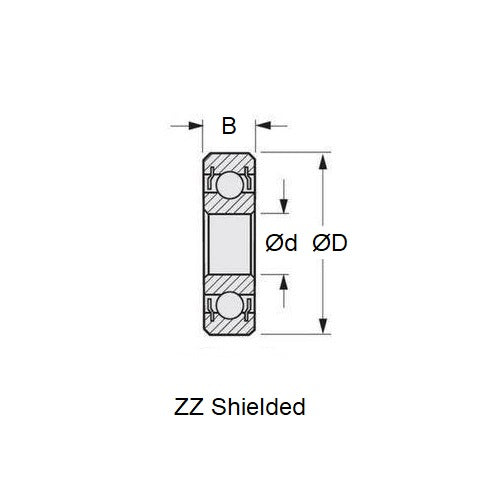

- ID (d) : 6.000 mm
- O.D. (D) 13.000 mm
- Width (B) 5.000 mm
- Precision Grade Economy
- Closure Type ZZ
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 686B
- Limiting Speed 38000
- Cage Type Standard
- Static Load Rating KGf 42.8
- Dynamic Load Rating KGf 104.5
- Radii 0.15 mm
- Inner Shoulder (UI) 7.40mm
- Outer Shoulder (UO) 11.70 mm
- Number of Balls 8
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- RC Helicopter Parts
- BMT - 1-8 Gas - Bearing
- BMT - 891 Austin - Bearing
- BMT - 931 4012 SA-AD - Bearing
- BMT - 931 Austin QCFE - Bearing
- CEN - Genesis 46 RTR Chasis 1/8 Scale - Bearing
- GS General Silicone - Vision Pro - Bearing
- Hobao® - Hyper GPX4 - Bearing
- HPI - Proceed - Bearing
- HPI - Proceed Update - Bearing
- HPI - R40 - Bearing
- HPI - R40 With Clutch Bell And Steering - Bearing
- HPI - Savage 25 and RTR - Bearing
- HPI - Savage SS - Bearing
- HPI - Savage XSS - Bearing
- Kyosho® - Evolva - Bearing
- Kyosho® - Evolva 2005 - Bearing
- Kyosho® - Fantom 2001 - Bearing
- Kyosho® - Giga Crusher - Bearing
- Kyosho® - Giga Crusher SF - Bearing
- Mugen® - K2 Advanced - Bearing
- Mugen® - MBX-4 - Bearing
- Mugen® - MBX-4XR - Bearing
- Mugen® - MBX-5 - Bearing
- Mugen® - MBX-5 Prospect - Bearing
- Mugen® - MBX-5 T - Bearing
- Mugen® - MBX-RR - Bearing
- Mugen® - MBX-XR Works - Bearing
- Mugen® - MRX-3 1/8 Scale - Bearing
- Mugen® - MRX-4 - Bearing
- Mugen® - MRX-4R - Bearing
- Mugen® - MTX-3 - Bearing
- Mugen® - MTX-3 Prospect - Bearing
- Mugen® - MTX-4 - Bearing
- Mugen® - Seiki MBX-4RR - Bearing
- Mugen® - Sting 1/8 Gas - Bearing
- NEO - 1-8 Gas - Bearing
- Ofna® - Pirate 1/8 Gas - Bearing
- Ofna® - Ultra LX COMP RTR - Bearing
- Ofna® - Ultra LX Pro RTR - Bearing
- Picco® - Integra 1/8 Gas - Bearing
- Picco® - RS600 Gas 1/10 - Bearing
- Picco® - Shepherd Speed 1/8 - Bearing
- Serpent® - 705 - Bearing
- Serpent® - 710 1-10TH Gas Sedan - Bearing
- Serpent® - 835 1-10 2WD - Bearing
- Serpent® - 835 1-10 4WD - Bearing
- Serpent® - 950 - Bearing
- Serpent® - 950R - Bearing
- Serpent® - 950R With Front Wheel Upgrade - Bearing
- Serpent® - 950R With STE Ten and Front Wheel UP - Bearing
- Serpent® - 950R With Steering and Tensioner - Bearing
- Serpent® - 960 - Bearing
- Serpent® - 960 FD - Bearing
- Serpent® - Impact M2 Spec 2000 4WD - Bearing
- Serpent® - Impulse 1/10 Scale Single SPE - Bearing
- Serpent® - Impulse Pro 1/10 4WD - Bearing
- Serpent® - Vector - Replacement Bearing
- Serpent® - Vector Spec 2000 - Bearing
- Serpent® - Veteq - Bearing
- Serpent® - XL900 MkII - Layshaft Bearing 6-13-5mm
- SMP Racing® Swiss - Slide V99-Alloy - Lay Shaft Bearing
- Xray® - NT1 - Bearing
- Century® - Falcon 46 - Bearing
- Century® - Falcon 46/50 SE II - Bearing
- Century® - Hawk II - Bearing
- Century® - Phoenix 52-4-C - Bearing
- Century® - Raven 30-50 - Bearing
- Hirobo® - Seadu 30 Evolution - Bearing
- Hirobo® - Seadu 50 Evolution - Bearing
- Hirobo® - Shuttle ZXX - 2500-079 Bearing
- Hirobo® - Shuttle ZXX - Bearing
- Kyosho® - CALIBER 30 - Bearing
- Schluter® - Eolo Pro - Bearing
- Schluter® - Eolo R22 - Bearing
- Schluter® - Eolo Spirit Pro - Bearing
- Schluter® - Spirit Pro - Bearing
- Thunder Tiger® - Raptor 50 SE - Replacement Bearing
- Thunder Tiger® - Raptor 50 SE Complete Kit - Replacement Bearing
- Thunder Tiger® - Raptor 50 Titan - Bearing
- Thunder Tiger® - Raptor 50 V2 - Bearing
- Thunder Tiger® - Raptor 60 V2 - Bearing
Cross References
- SERPENT® 1342
- ATA 170.474005.02-ALT
- Shielded Width B 686/5
- Shielded 686B / 5
- SERPENT® 6x13
- SMP Racing Swiss 9712011
- SMP-RACING-SWISS 9712011
- Misumi® C-E686ZZ
- 17047400502ALT
- CE686ZZ
- 686B Basic Size Ref
