SMR106A-ZZS-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

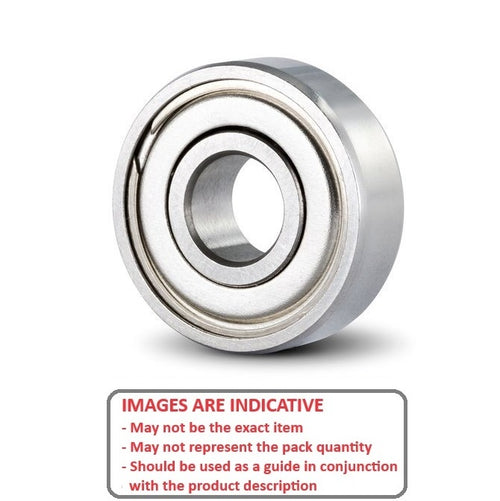

Double shielded standard stainless steel bearing
- ID (d)
:
6.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.236 in.) - O.D. (D)
10.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.394 in.) - Width (B)
3.000
mm
+ 0.000 / - 0.125
(Equiv. 0.118 in.) - Precision Grade Abec 1
- Closure Type ZZS
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR106A
- Limiting Speed 45000
- Cage Type Crown
- Static Load Rating KGf 22
- Dynamic Load Rating KGf 51
- Radii 0.15 mm
- Inner Shoulder (UI) 7.04mm
- Outer Shoulder (UO) 9.30 mm
- Number of Balls 10
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Helicopter Parts
- Bergen Machine® - Intrepid 60 - Replacement Bearing
- Century® - Hawk II - Replacement Bearing
- Century® - Hawk II Upgrade Kit - Replacement Bearing
- Century® - Hawk Sport All - Replacement Bearing
- Century® - Ninja Pro® 30/46 All - Replacement Bearing
- Gaui® - Hurricane 550 - Replacement Bearing
- Hirobo® - Lepton EX - Replacement Bearing
- Hirobo® - Seadu 30 Evolution - Replacement Bearing
- Hirobo® - Seadu 50 Evolution - Replacement Bearing
- Hirobo® - Shuttle Challenge Upgrade Kit - Replacement Bearing
- Hirobo® - Shuttle Plus - Replacement Bearing
- Hirobo® - Shuttle ZX-0402 Upgrade Kit - Replacement Bearing
- Hirobo® - ZTS Upgrade Kit - Replacement Bearing
- Kyosho® - CALIBER 30 - Replacement Bearing
- Kyosho® - CONCEPT 30 SR-T - Replacement Bearing
- Kyosho® - CONCEPT 60 SR - Replacement Bearing
- Kyosho® - NEXUS 30 - Replacement Bearing
- Mikado® - Logo 10 3D Version - Replacement Bearing
- MS Composit - Hornet Micro Heli - Replacement Bearing
- Thunder Tiger® - Raptor 30 - Replacement Bearing
- Thunder Tiger® - Raptor 50 SE - Replacement Bearing
- Thunder Tiger® - Raptor 50 SE Complete Kit - Replacement Bearing
- Thunder Tiger® - Raptor 50 Titan - Replacement Bearing
- Thunder Tiger® - Raptor 50 V2 - Bearing
- Thunder Tiger® - Raptor 60 V2 - Bearing
- Thunder Tiger® - Raptor 90 SE - Bearing
Cross References
- 7804K111
- Reid Tool® DMB-72
- Stainless MR106AZZSMC3
- Stainless MR106A-ZZS-MC3
- SSISO MR106ZZ
- SSISO MR106-ZZ
- SHIMANO® RD4724
- SHIMANO® RD4831
- SHIMANO® RD7943
- Similar Part SMR106A-ZZ-MC3
- NTN® SMR106-ZZ
- Similar Part SSMR106A-ZZ-MC3
- NTN® SSMR106-ZZ
- SHIMANO® TGT0458
- SHIMANO® TGT0499
- SHIMANO® TGT1740
- RMB® ULZ610X
- WML6010-ZZST
- WML6010ZZST
- SSMR106ZZ
- SSMR106A-Z-MC3
- SSMR106AZMC3
- SSMR106AZZSMC3
- SSMR106A-ZZSMC3
- SSL1060-ZZ
- SSL1060ZZ
- SS-L1060-ZZ
- DDL1060-ZZ
- DD-L1060-ZZ
- DDL1060ZZ
- DMB72
- MR106A Basic Size Ref
