MR106A-ZZS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

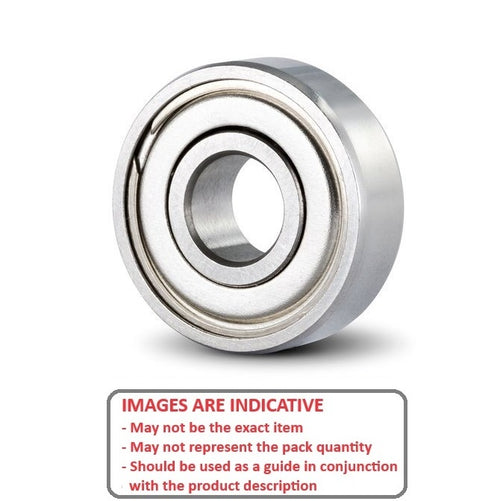

Double shielded economy bearing
- ID (d) : 6.000 mm
- O.D. (D) 10.000 mm
- Width (B) 3.000 mm
- Precision Grade Economy
- Closure Type ZZS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR106A
- Limiting Speed 42750
- Cage Type Standard
- Static Load Rating KGf 20.9
- Dynamic Load Rating KGf 48.4
- Radii 0.15 mm
- Inner Shoulder (UI) 7.04mm
- Outer Shoulder (UO) 9.30 mm
- Number of Balls 10
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- RC Helicopter Parts
- Academy® & MRC® - SP-3 Extreme 1/2 Scale EP - Bearing
- Academy® & MRC® - SP-3 Matiz 1/12 Scale - Bearing
- Academy® & MRC® - SP-3 X - Bearing
- A-Tech® - XMB4 Buggy - Bearing
- A-Tech® - XMT-4 Truck - Bearing
- CEN - Genesis 46 RTR Chasis 1/8 Scale - Bearing
- CEN - Matrix - Bearing
- Cox® - Bandito - Ultra Stock - Bearing
- Cox® - Tomahawk - Bearing
- Duratrax® - Micro Street Force RTR - Bearing
- Duratrax® - Mini Quake - Bearing
- Duratrax® - Mini Quake SE - Bearing
- Duratrax® - Vendett ST Truck - Bearing
- GS General Silicone - Storm Pro Gas - Bearing
- GS General Silicone - Storm Unlimited Truck SUT-RTR - Bearing
- Hobao® - Hyper 8 - Bearing
- Hobao® - Hyper E ST Truggy - Bearing
- Hot Bodies® - Lightning 2 - Bearing
- Hot Bodies® - Lightning 2 Pro - Bearing
- Hot Bodies® - Lightning 2 RR - Bearing
- Hot Bodies® - Lightning Pro With O Radio - Bearing
- Hot Bodies® - Lightning RR Truggy RTR 1/10 - Bearing
- Hot Bodies® - Lightning Stadium Pro - Bearing
- Hot Bodies® - Lightning Stadium RTR - Bearing
- Hot Bodies® - Lightning Street 1/7 RTR - Bearing
- HPI - Hellfire - Bearing
- HPI - Micro RS4 - Bearing
- HPI - Micro RS4 Complete With Upgrade - Bearing
- HPI - Micro RS4 RTR 4WD - Bearing
- HPI - R40 - Bearing
- HPI - R40 With Clutch Bell And Steering - Bearing
- Kyosho® - ATV - Bearing
- Kyosho® - Benitone B192 - Bearing
- Kyosho® - Evolva - Bearing
- Kyosho® - Evolva 2005 - Bearing
- Kyosho® - F1 Impress - Bearing
- Kyosho® - Ferrari F92A - Bearing
- Kyosho® - Formula 1 Benitone B192 - Bearing
- Kyosho® - Formula 1 Ferrari F92A - Bearing
- Kyosho® - Formula 1 Jordan Yam - Bearing
- Kyosho® - Formula 1 Williams - Bearing
- Kyosho® - Formula 1 Williams FW14 - Bearing
- Kyosho® - FW14 Jordan Yam - Bearing
- Kyosho® - Gallop MK-II - Bearing
- Kyosho® - Giga Crusher - Bearing
- Kyosho® - Giga Crusher SF - Bearing
- Kyosho® - Honda CRX - Bearing
- Kyosho® - Indy Scotch - Bearing
- Kyosho® - Inferno ST-R - Bearing
- Kyosho® - Inferno Truggy - Bearing
- Kyosho® - MP 7.5 - Bearing
- Kyosho® - MP 7.5 Kanai 2 Inferno - Bearing
- Kyosho® - MP 7.5 Kanai 2 Pro-Sports - Bearing
- Kyosho® - MP 7.5 Kanai 3 Inferno - Bearing
- Kyosho® - MP 7.5 Kanai Inferno - Bearing
- Kyosho® - MP 7.5 Sports Inferno - Bearing
- Kyosho® - MP 777 Inferno - Bearing
- Kyosho® - MP 777 SP1 Inferno - Bearing
- Kyosho® - MP 777 SP2 - Bearing
- Kyosho® - MP 777 ST-R Truggy - Bearing
- Kyosho® - MP-6 International - Bearing
- Kyosho® - Outlaw Rampage 1/10 Gas - Bearing
- Kyosho® - Outlaw RMPG 1/10 Gas. - Bearing
- Kyosho® - Outrage ST - Bearing
- Kyosho® - ProX and Trans - Bearing
- Kyosho® - Quad Rider EV - Bearing
- Kyosho® - Rampage Sport 31324 - Bearing
- Kyosho® - SR5 Truck - Bearing
- Kyosho® - Twin Force -Motor Truck - Bearing
- Kyosho® - Vanning - Bearing
- Kyosho® - V-One RR Evolution - Bearing
- Kyosho® - V-One RRR - Bearing
- Kyosho® - V-One S 2 Speed - Bearing
- MSR - X5T - Bearing
- Mugen® - Athlete Upgrade - Bearing
- Mugen® - Athlete Upgrade Kit - Bearing
- Mugen® - MBX-4XR - Bearing
- Mugen® - MBX-5 - Bearing
- Mugen® - MBX-5 Prospect - Bearing
- Mugen® - MBX-5 T - Bearing
- Mugen® - MBX-RR - Bearing
- Mugen® - MBX-XR Works - Bearing
- Mugen® - MRX-3 1/8 Scale - Bearing
- Mugen® - MRX-4 - Bearing
- Mugen® - MRX-4R - Bearing
- Mugen® - Seiki MBX-4RR - Bearing
- NEO - 1-8 Gas - Bearing
- Ofna® - Hyper 7 Pro - Bearing
- Ofna® - Jammin - Bearing
- Ofna® - Jammin 1 CR - Bearing
- Ofna® - Jammin 1 CR With Steering - Bearing
- RD Logistics - Mongoose - Bearing
- Robitronics® - Scalpel Pro 1/8 - Bearing
- Serpent® - 950R With STE Ten and Front Wheel UP - Bearing
- Serpent® - 950R With Steering and Tensioner - Bearing
- Serpent® - 960 FD - Bearing
- Serpent® - Freedom T1 - Bearing
- Serpent® - Sprint 6000 Gas - Bearing
- Sport Werks® - Mayhem Pro - Bearing
- Sport Werks® - Mayhem RTR - Bearing
- Tamiya® - Stadium Racer - Bearing
- Tamiya® - Stadium Racer Complete Kit - Bearing
- Tamiya® - TB Evolution IV 4Evo 4 - Bearing
- Tamiya® - TB-02 - Bearing
- Tamiya® - Terra Crusher - Bearing
- Team Associated® - MGT4.60SE - Bearing
- Team Associated® - Monster GT Truck and RTR Nitro Off Road - Bearing
- Team Losi® - 1-8 Scale Buggy with clutch bell - Bearing
- Team Losi® - Aftershock Monster Truck RTR LOSB0012 - Bearing
- Team Losi® - Eight-T - Bearing
- Team Losi® - LST Super Truck LOSB0010 - Bearing
- Team Losi® - Monster Truck LST2 LOSB0015 - Bearing
- Team Losi® - Muggy - Bearing
- Team Magic® - G4S - Bearing
- Trinity® - G4 Nitro Touring Car-E Class - Bearing
- Trinity® - Mongoose - Bearing
- Trinity® - Reflex NT 1/10 Scale - Bearing
- Trinity® - Reflex NT Nitro With Clutch Bell - Bearing
- Trinity® - Reflex NT Without Clutch Bell - Bearing
- Xray® - FK5 Electric - Bearing
- Xray® - M18 - Bearing
- Xray® - M18 Upgrade Option - Bearing
- Xray® - M18T - Bearing
- Xray® - NT-18 - Bearing
- Xray® - T1 - Bearing
- Xray® - T1 Evo 2 - Bearing
- Xray® - T1 Factory Kit - Bearing
- Xray® - T1 FK 05 Complete - Bearing
- Xray® - T1 Racer - Bearing
- Xray® - T1M Mini - Bearing
- Xray® - X Ray - Bearing
- Xray® - XB8 Nitro - Bearing
- Xray® - XB8R - Bearing
- Xray® - XB8-TQ - Bearing
- XTM Racing - Mammoth Massive Appeal RTR - Bearing
- XTM Racing - Nitro Mammoth RTR - Bearing
- Yokomo® - MR-4 Rally - Bearing
- Yokomo® - MR-4BC Special - Bearing
- Yokomo® - MR-4MT - Bearing
- Yokomo® - MR-4TC - Bearing
- Yokomo® - MR-4TC BD - Bearing
- Yokomo® - MR-4TC Custom - Bearing
- Yokomo® - MR-4TC SD CGM - Bearing
- Yokomo® - MR-4TC SD CM Drift Package - Bearing
- Yokomo® - MR-4TC SD SSG /Black - Bearing
- Yokomo® - MR-4TC SP - Bearing
- Yokomo® - MR-4TC With Bell Crank Steering - Bearing
- Yokomo® - MX4 - Bearing
- Yokomo® - MX4 - Hub Carriers Front and Rear Bearing
- Bergen Machine® - Intrepid 60 - Bearing
- Century® - Falcon 46 - Bearing
- Century® - Falcon 46 Upgrade Kit - Bearing
- Century® - Falcon 46/50 SE II - Bearing
- Century® - Hawk II - Bearing
- Century® - Hawk II Upgrade Kit - Bearing
- Century® - Hawk Sport All - Bearing
- Century® - Ninja Pro® 30/46 All - Bearing
- Century® - Ninja Pro® 30-46 - Bearing
- Century® - Phoenix 52-4-C - Bearing
- Century® - Phoenix 52-4-C Upgrade Kit - Bearing
- Century® - Predator Gas SE Complete - Bearing
- Century® - Predator Gasser Complete - Bearing
- Century® - Raven 30-50 - Bearing
- Gaui® - Hurricane 550 - Replacement Bearing
- Hirobo® - Lepton EX - Bearing
- Hirobo® - Seadu 50 Evolution - Bearing
- Hirobo® - Shuttle - Upgrade Kit Replacement Bearing
- Hirobo® - Shuttle Challenge Upgrade Kit - Bearing
- Hirobo® - Shuttle Plus - Replacement Bearing
- Hirobo® - Shuttle Z - 2500-054 Bearing
- Hirobo® - Shuttle Z - Bearing
- Hirobo® - Shuttle ZX - 2500-054 Bearing
- Hirobo® - Shuttle ZX - Bearing
- Hirobo® - Shuttle ZX-0402 Upgrade Kit - Bearing
- Hirobo® - Shuttle ZXX - 2500-054 Bearing
- Hirobo® - Shuttle ZXX - Bearing
- Hirobo® - Tsurgi - 2500-054 Bearing
- Hirobo® - ZTS Upgrade Kit - Bearing
- Kyosho® - CALIBER 30 - Bearing
- Kyosho® - CONCEPT 30 DX - Bearing
- Kyosho® - CONCEPT 30 SE - Bearing
- Kyosho® - CONCEPT 30 SR-T - Bearing
- Kyosho® - CONCEPT 30 SX - Bearing
- Kyosho® - CONCEPT 30-DX - 88 Bearing
- Kyosho® - CONCEPT 30-SE - 88 Bearing
- Kyosho® - CONCEPT 30-SX - 88 Bearing
- Kyosho® - CONCEPT 60 - Bearing
- Kyosho® - CONCEPT 60 - Replacement Bearing
- Kyosho® - CONCEPT 60 R - 105 Bearing
- Kyosho® - CONCEPT 60 SR - Bearing
- Kyosho® - NEXUS 30 - Bearing
- MS Composit - Hornet Micro Heli - Bearing
- Schluter® - Futura - Replacement Bearing
- Schluter® - Magic - Bearing
- Schluter® - Magic - Replacement Bearing
- Thunder Tiger® - Raptor 30 Complete Kit - Replacement Bearing
- Thunder Tiger® - Raptor 50 SE - Replacement Bearing
- Thunder Tiger® - Raptor 50 SE Complete Kit - Replacement Bearing
- Thunder Tiger® - Raptor 50 Titan - Bearing
- Thunder Tiger® - Raptor 50 V2 - Bearing
- Thunder Tiger® - Raptor 60 V2 - Bearing
- Thunder Tiger® - Raptor 90 SE - Bearing
Cross References
- HIROBO 0402-123 KIT
- Misumi® C-E676ZZ
- Similar Part MR106A-ZZ-ECO
- 0402123 KIT
- MR106AZECO
- MR106A-Z-ECO
- CE676ZZ
- MR106A Basic Size Ref
