Miniature Bearings Australia
MR106A-2RB-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

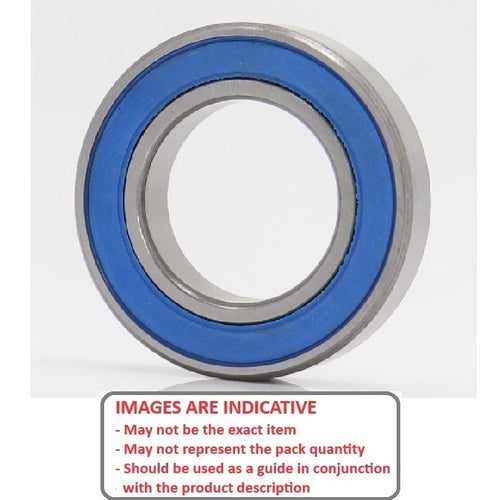

Double blue rubber sealed economy flanged bearing

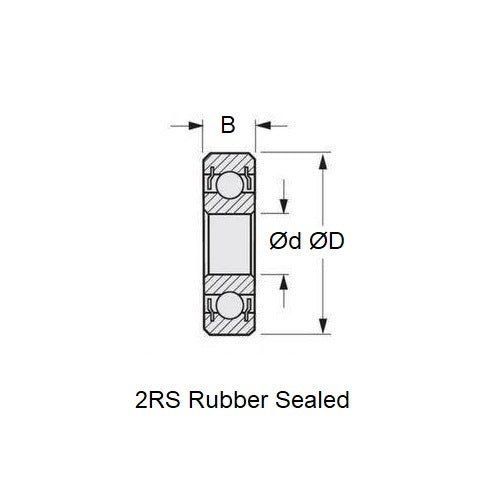

- ID (d) : 6.000 mm
- O.D. (D) 10.000 mm
- Width (B) 3.000 mm
- Precision Grade Economy
- Closure Type 2RB
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR106A
- Limiting Speed 38475
- Cage Type Standard
- Static Load Rating KGf 20.9
- Dynamic Load Rating KGf 48.4
- Radii 0.15 mm
- Inner Shoulder (UI) 7.04mm
- Outer Shoulder (UO) 9.30 mm
- Number of Balls 10
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type 2RB
- Max Temperature 80 Deg. C
