Miniature Bearings Australia
OW-0060-0100-0120-R - Datasheet
MBA
Category Information

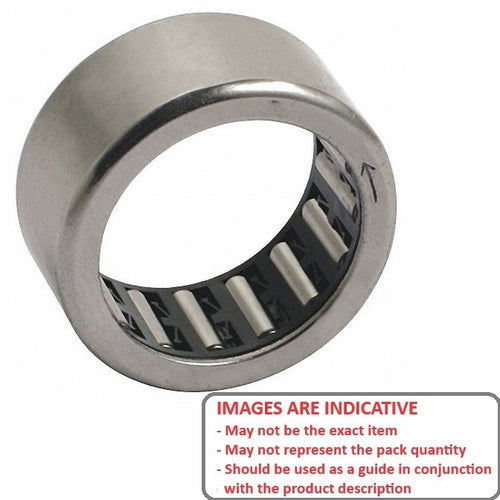

Bearings - One Way - RollerRoller One Way Bearings. Roller Clutch Bearings rotate in one direction only.
- One way bearings, also known as clutch bearings, or non-reversing bearings, allow rotation in a single direction.
- Commonly used in over-runnung, or backstopping applications.
- The unidirectional operation allows these bearings to play a crucial role in various mechanical systems where controlled rotation, overrunning protection, backstopping, indexing, or intermittent motion is required.
- Recommended Shaft Diameter for Clutch Bearings without Inner Ring is +0.000 / -0.005 mm.
Product Data
One way direction

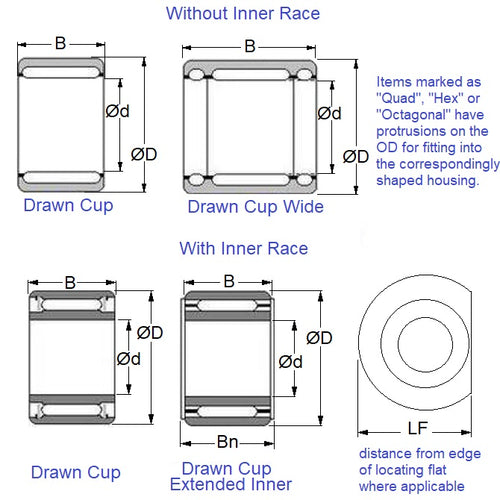

- ID (d) : 6.000 mm
- O.D. (D) 10.000 mm
- Width (B) 12.000 mm
- Overrun Limiting Speed 22000 RPM
- Type Drawn Cup Standard
- Bearings Material Steel
- Max Torque 1.76 N.m
- Cage Material Steel
- Material Chrome Steel
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- RC Helicopter Parts
- BMT - 1-10 Gas - Roller Clutch Bearing
- BMT - 1-8 Gas - Roller Clutch Bearing
- Mugen® - Advance 1/10 - Roller Clutch Bearing
- Serpent® - 9000 - Front Drive Axle Roller Clutch Bearing
- Serpent® - Excel 1/8 4WD - Front Drive Axle Roller Clutch Bearing
- Align® - Trex 450 SE - Roller Clutch Bearing
- Align® - Trex 450 SE Special V2 - Roller Clutch Bearing
- Align® - Trex 450 X - Roller Clutch Bearing
- Align® - Trex 450 XL - Roller Clutch Bearing
- E-Flite® - BLADE 400 3D - One-Way Bearing 6-10-12mm
- E-Sky® - Belt CP - Roller Clutch Bearing for Main Gear
- Hirobo® - Shuttle ZXX - 2500-081 Roller Clutch Bearing
- Hirobo® - Shuttle ZXX - Roller Clutch Bearing
- Ikarus® - ECO Piccolo - Roller Clutch Bearing
- Ikarus® - ECO Piccolo V2 - Roller Clutch Bearing
- JR - Ergo 30/46 Complete Kit - Roller Clutch Bearing
- JR - Ergo 30/46 Upgrade Kit - Roller Clutch Bearing
- Schluter® - Eolo R22 - Roller Clutch Bearing
Cross References
- HIROBO 2500-081
- 6392K41
- E-Flite EFLH1450
- INA HF0612
- Torrington® HF0612
- S99NH3MURC0612
- 2500081
