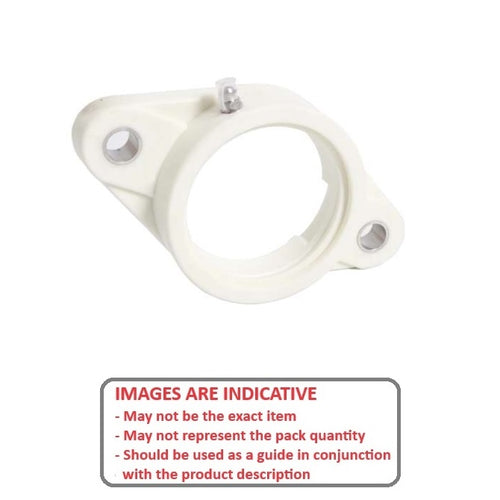

FL204PE - Datasheet
KMS
Category Information
Housings - Flanged - 2 Bolt - Plastic to Suit Spherical OD BearingPlastic to Suit Spherical OD Bearing 2 Bolt Flanged Housings. Load and speed capability depend on the bearing used.
- An expanded range may be available on special order. Please enquire.
- Use with steel or plastic bearing inserts for plastic housings.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

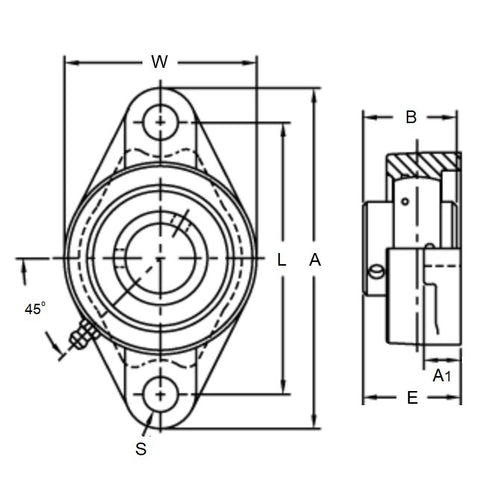

- Height (H) : 64.000 mm
- Length (L) 113.000 mm
- Width - Assembled (W) 31.950 mm
- Bolt Hole Centres (J) 90.000 mm
- Base Width (A1) 11.400 mm
- Bearing Width (B) 13.000 - 15.000 mm
- To Suit Bearing UC204 - UCDR204 - S6-UC204
- Bolt Hole Size (s) 11.11 mm
- Material Polyethylene
Product Compliance and Data
Additional Resources
Cross References
- KMS NFL204
