Miniature Bearings Australia
ORB-06309-353-S70-230-C - Datasheet
MBA
Category Information
O-Rings - Silicone Rubber BulkSilicone Rubber Bulk O-Rings. High thermal resistance and cold flexibility. Some dental applications are included in the listings. Commonly used in food applications.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -70 Deg C to +200 Deg C.
- Good dialectric properties and resistance to ozone and oxygen attack.
- Retains flexibility at high and low temperatures.
- Poor strength and tear resistance. Poor resistance to oils, fuels, concentrated acids and alkalis, water and steam.
- Bulk stock orders are the most economical way to purchase, but smaller packs are available for some sizes.
Product Data

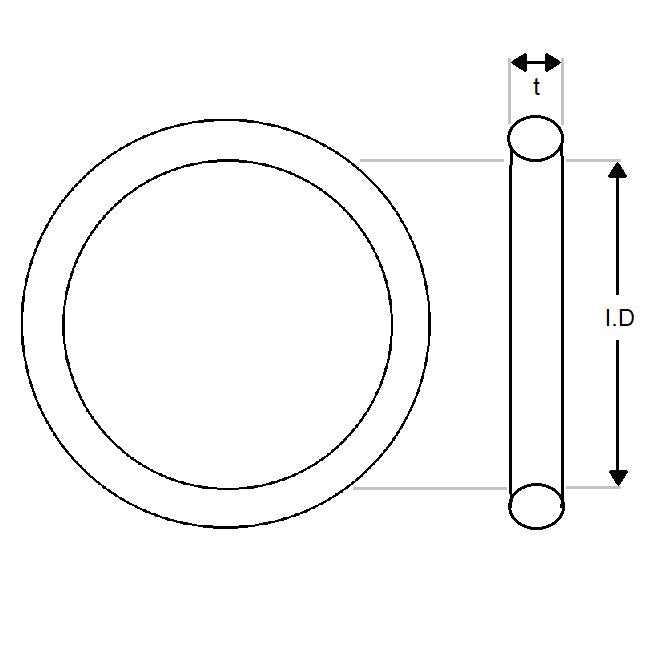

- Inside Diameter (ID)
:
63.09
mm
(Equiv. 2.484 in.) - Section (t)
3.53
mm
(Equiv. 0.139 in.) - Colour Clear
- Hardness Duro 70
- Material Silicone Rubber
Product Compliance and Data
Additional Resources
Cross References
- OR-06309-353-S70-230-C
- OR06309353S70230C
