CCE-06000-S15 - Datasheet
MBA
Category Information

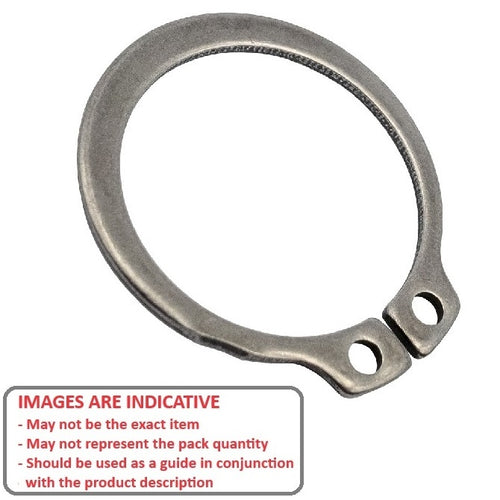

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
Product Data

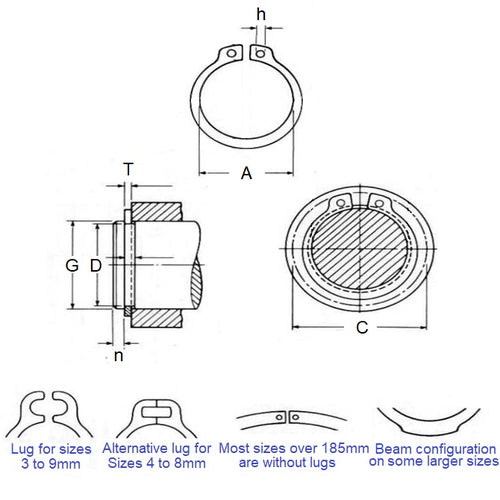

- Shaft Diameter (Ds) : 60.00 mm
- Clip Thickness (T)
2.00
mm
+ 0.00 / - 0.07
(Equiv. 0.079 in.) - Groove Dia. (Dg)
56.70
mm
+ 0.00 / - 0.30
(Equiv. 2.232 in.) - Approx. Loose Circlip ID (A) 55.80 mm
- Groove Width (W) 2.15 mm
- Clearance on Shaft (C1) 71.80 mm
- Clearance in Groove (C1) 75.60 mm
- Min. Lug Diameter (h) 2.50 mm
- Min. Extension (n) 4.50
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-060-SS
- 90967A375
- Seeger® A-060-SS
- Seeger® A60K500-S
- Seeger® A60X2-411
- Seeger® A60X2SS
- Bossard® BN818-060-SS
- Waldes® D1400-060-SS
- Huyett® DSH-060-SS
- NoCor® DSH-060-SS
- Rotor Clip® DSH-060-SS
- A60K500S
- A60X2411
- BN818060SS
- A060SS
- D1400060SS
- 471060SS
- DSH060SS
