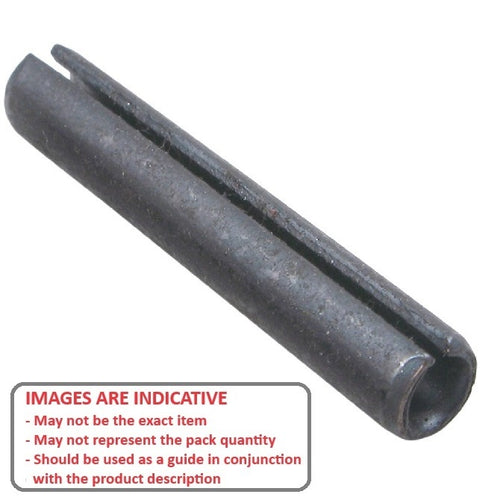

RP064-0381-Z - Datasheet
MBA
Category Information
Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 6.35 mm
- Length (L) 38.10 mm
- Free Diameter 6.98 mm
- Thickness (S) 1.22 mm
- Chamfer Length (cL) 0.31-1.65 mm
- Chamfer Diameter (cD) 6.2 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 801170
- 90692A746
- Reid Tool® P-42
- NoCor® SP-250-1500
- Small Parts SPS-14-24
- Brighton Best® V80170
- SPS1424
- SP2501500
- SPB025150ASF
- P42
