KW-064-110-249-S3 - Datasheet
ExaktKey
Category Information

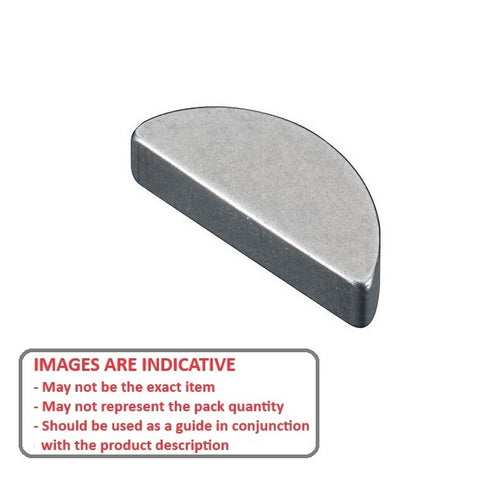

Keys - Woodruff - 303 Stainless Steel303 Stainless Steel Woodruff Keys. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
6.35
mm
+/- 0.025
(Equiv. 0.25 in.) - Approx. Height (H)
11.0
mm
+/- 0.250
(Equiv. 0.433 in.) - Approx. Length (L) 24.94 mm
- Basis Diameter (D) 25.40 mm
- Material Stainless Steel 303 (Similar to A2 or 304 or 18-8)
Product Compliance and Data
Additional Resources
Cross References
- NoCor® 808SS
- ANSI 808-SS
- NoCor® A9X490832
- Key Size 15 Stainless
- Huyett® WKS-015
- NoCor® WKS015
- KW064254S3
- A9X49-0832
