PSP-064-025-S2 - Datasheet
MBA
Category Information

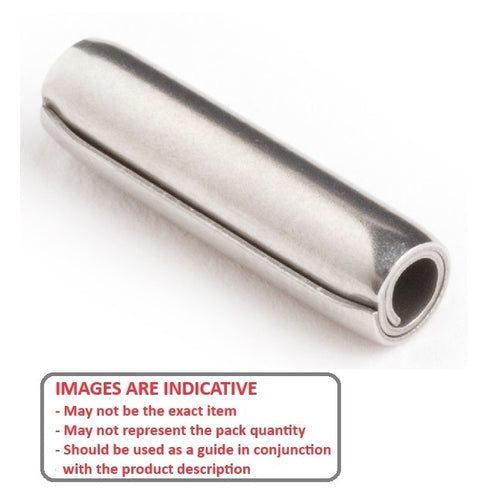

Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter : 6.35 mm
- Length
25.40
mm
+/- 0.50
(Equiv. 1 in.) - Drill Size 6.35 - 6.50 mm
- Loose Diameter 6.60 - 6.88 mm
- ISO Standard Duty ASME B18.8.2
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Huyett® SPC3P-250-1000
- NoCor® SPC3P-250-1000
- SPC3P2501000
