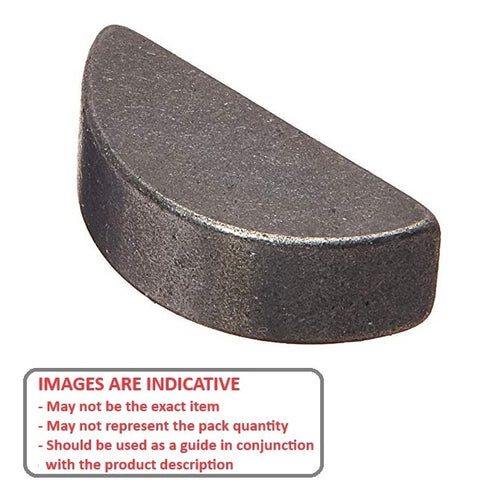

KW-064-094-217-C - Datasheet

ExaktKey

Product Data

• Thickness (S) : 6.35 mm _{+/- 0.025}
  (Equiv. 0.25 in.)
• Approx. Height (H) 9.4 mm _{+/- 0.250}
  (Equiv. 0.37 in.)
• Approx. Length (L) 21.74 mm
• Basis Diameter (D) 22.23 mm
• Finish Plain
• Hardness HRB 80
• Material Carbon Steel C45

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Keysteel Catalogue PDF


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• ANSI 807
• 98481A150
• Make-A-Key HMEDWA
• Key Size A
• NoCor® WK12
• Reid Tool® WK-12
• Huyett® WKC-00A
• NoCor® WKC00A
• KW064222C
