SR168-ZZS-MC3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Standard single row radial ball bearings.

Product Data

Double shielded stainless steel bearing

ID (d) : 6.350 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.25 in.)
O.D. (D) 9.525 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.375 in.)
Width (B) 3.175 mm _{+ 0.000 / - 0.125}
(Equiv. 0.125 in.)
Precision Grade Abec 1
Closure Type ZZS
Bearing Type Radial
Material Stainless Steel AISI 440C

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part R168
Limiting Speed 48000
Cage Type Crown
Static Load Rating KGf 18
Dynamic Load Rating KGf 38
Radii 0.10 mm
Inner Shoulder (UI) 7.08mm
Outer Shoulder (UO) 8.85 mm
Number of Balls 11
Clearance MC3 (5 to 10)
Precision Grade Abec 1
Closure Type ZZS
Max Temperature 120 Deg. C

Country of Origin: JP

Product Compliance and Data

Additional Resources

Applications & Uses

RC Car Parts
Cobra® - Nemesis - Bearing
Corally® - CCT and RTR - Bearing
Corally® - SP10 - Bearing
Corally® - SP12 - Bearing
Corally® - SR12M and RTR - Bearing
CRC Calandra Racing Concepts - 3 - Bearing
CRC Calandra Racing Concepts - 3.2 R Carpet Knif - Bearing
Duratrax® - Hyper-10 - Bearing
Duratrax® - RC10T Gas Conversion - Bearing
Hyperdrive® - 510 - Bearing
Hyperdrive® - 510 Upgrade - Bearing
Hyperdrive® - Pan Scale1/10 - Bearing
Hyperdrive® - STX - Bearing
Racetech® - Carpet Pro - Bearing
Schumaker® - Boss Cat - Works Edition - Bearing
Schumaker® - Cougar Works - Bearing
Team Associated® - RC10 - T3 1/10 - Ball Bearing for 6374 or 7362 Axles - 6.35x9.525
Team Associated® - RC10B3 Sport - Bearing
Team Associated® - RC10GT Old Nitro Off Road - Bearing
Team Associated® - RC10GT/ST Team Truck - Bearing
Team Associated® - RC10L3 Oval With Diff Bearing - Bearing
Team Associated® - RC10L4 Oval - Bearing
Team Associated® - RC10LSS - Bearing
Team Associated® - RC10T Truck - Bearing
Team Associated® - RC10T2 Sport - Bearing
Team Associated® - RC12LC - Bearing
Team Associated® - RC12LSS - Bearing
Team Losi® - JR T Trans - Bearing
Team Losi® - JRX2 - Bearing
Team Losi® - JRXT Truck - Bearing
Team Losi® - LX-T - Bearing
Team Losi® - Rally Street Upgrade Kit - Bearing
Team Losi® - Rally Street Weapon - Bearing
Team Losi® - Street Weapon - Bearing
Team Losi® - XX - XXCR - XXT CR - Bearing
Team Losi® - XXX-NT AD Version - Bearing
Trinity® - Black Widow - Bearing
Trinity® - Evolution 10 3-16 Axle - Bearing
Trinity® - Evolution 10 LSS - Bearing
Trinity® - Reflex 12 - Bearing
Trinity® - Reflex 12 Oval - Bearing
Trinity® - Revolver 12 - Bearing
Trinity® - Switchblade 1/8 Axle - Bearing
Trinity® - Switchblade 12 - Bearing
Trinity® - Switchblade 12 SJ - Bearing
Trinity® - Switchblade 2 - Bearing
Yokomo® - YRX-12WE - Bearing

Cross References

View full details

SR168-ZZS-MC3Diagram

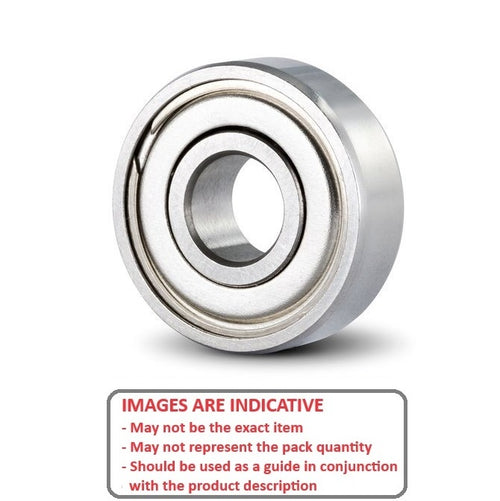

SR168-ZZS-MC3Image
