COL-00635-019-25-GF-S4 - Datasheet
MBA
Category Information

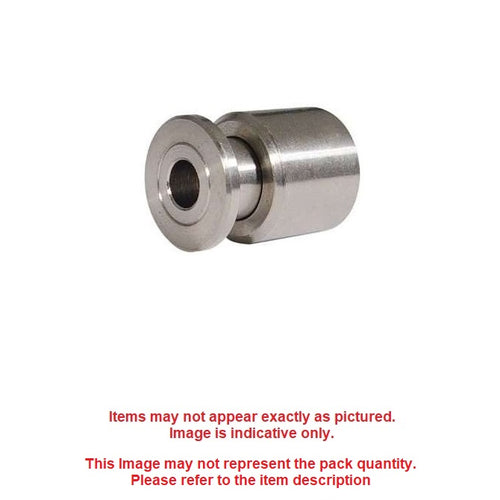

Collars - Shaft - Gripfast - 304 Stainless Steel304 Stainless Steel Gripfast Shaft Collars. Self Locking - Quick Release.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- 304 Stainless Body, Retention Ring, Balls and Springs.

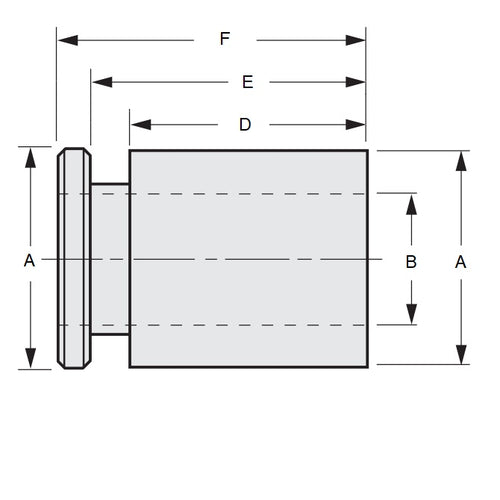

Product Data
- Suitable Shaft Size (d) : 6.350 mm
- Outside Diameter (D) 18.80 mm
- Overall Width (S) 25.4 mm
- Sleeve Length (D) 16.205 mm
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® SMI-250SS
- A7X34-0250
- A7X340250
- SMI250SS
