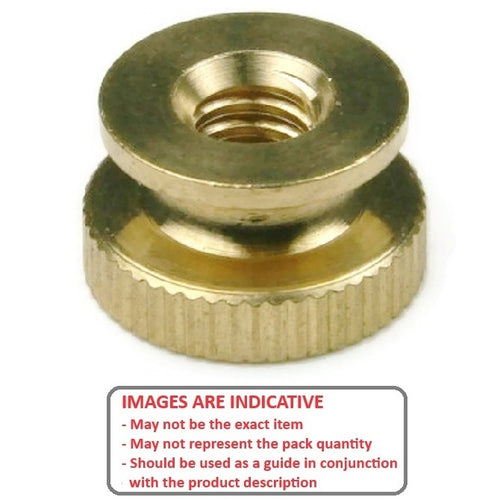

NT035C-THC-BR - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

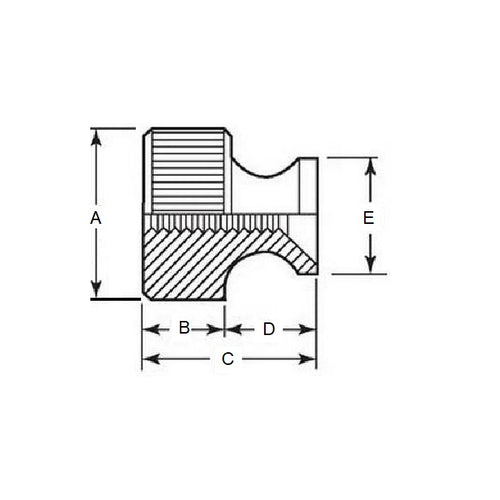

• Thread Size : 6-32 UNC (3.5mm)
• Overall Length (C) 7.1 mm
• Head Width (B) 3.18 mm
• Head Diameter (A) 9.53 mm
• Collar Diameter (E) 8.73 mm
• Collar Height (D) 3.97 mm
• Material Brass

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 92741A110
• Reid Tool® AJ-709
• AJ709
