SPANC-035C-016 - Datasheet

MBA

Category Information

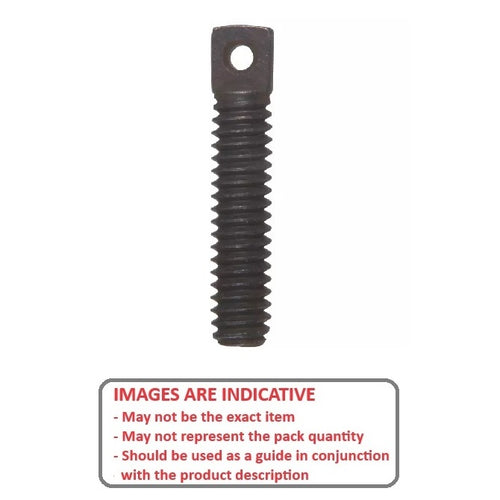

Spring Anchors - Steel

Steel Spring Anchors. C-12114 steel selection. Black oxide finish.

  • An economical way to secure the ends of extension springs, and provide easy adjustment.

Product Data

  • Thread : 6-32 UNC (3.5mm)

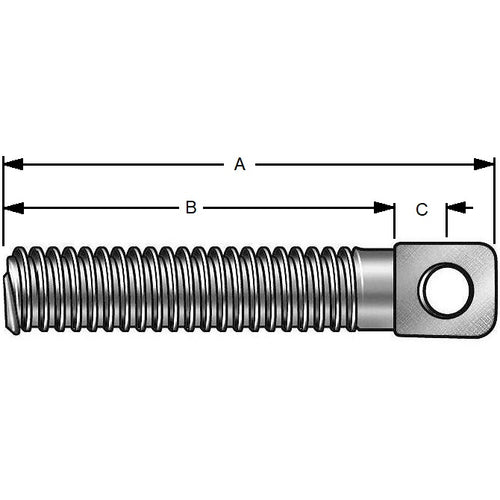

  • Overall Length (A) 15.875 mm
  • Thread Length (B) 10.160 mm
  • Thread to Centre Eye (C) 1.778 mm
  • Hole Size 1.270 mm
  • Load 54 Kg
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 9634K21
  • CSA50RS
