Miniature Bearings Australia
GO-060-035-090-E12 - Datasheet
MBA
Category Information
Grommets - EPDM Rubber - OpenOpen EPDM Rubber Grommets. EPDM Rubber Grommets
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- 50 +/-5 Durometer
- Easy to install
- Good Vibration and Shock Control
- Protects Wire, Cable and Hoses
- Also see snap bushings for a hard plastic product serving a similar purpose
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

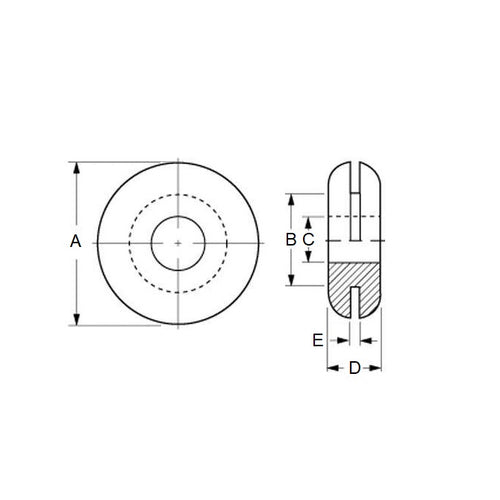

- Plate Hole Diameter (B) : 6.00 mm
- Inside Diameter (C) 3.50 mm
- Outside Diameter (A) 9.00 mm
- Thickness (D) 3.70 mm
- Plate Thickness (E) 1.20 mm
- Edge Radius (R) 0.60 mm
- Net Weight 0.2 grams
- Material EPDM
Product Compliance and Data
Additional Resources
Cross References
- V12R32M09003712
