RCL-060-141-ZD - Datasheet

MBA

Category Information

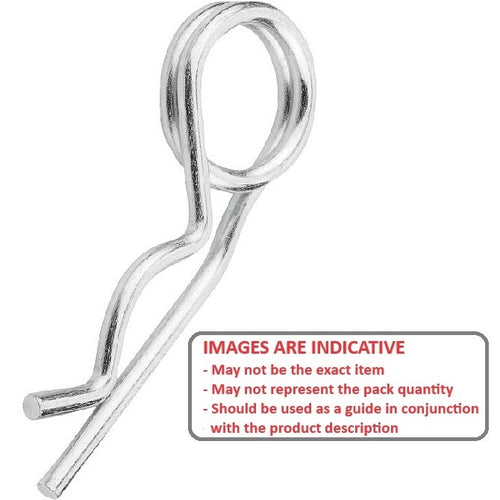

R Clips - Double Coil - Steel

Steel Double Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins

  • Material: Spring Wire

Product Data

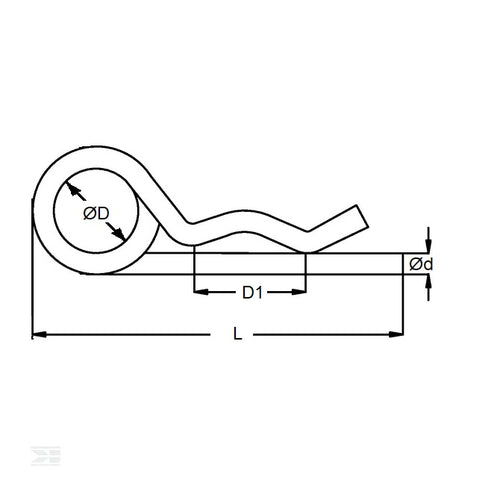

  • Wire Thickness (d) : 6.00 mm
  • Length (L) 141.0 mm
  • Material Zinc Plated
  • Drill Hole Size 6.50 mm
  • Approx.Inside Eye (D) 28.00 to 32.00 mm
  • Shaft Size Range 24.00 to 36.00 mm
  • Approx. Bridge Length (D1) 44 mm
  • Material Carbon Spring Steel Zinc Plated
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • RPD6120
  • RPD6-120
