RCL-060-126-Z - Datasheet
MBA
Category Information

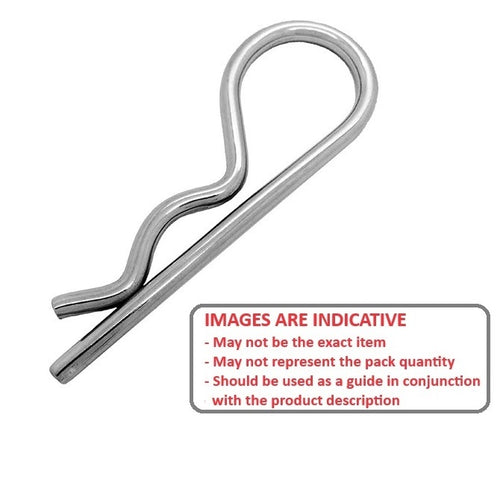

R Clips - Single Coil - SteelSteel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
- Material: Spring Wire
Product Data

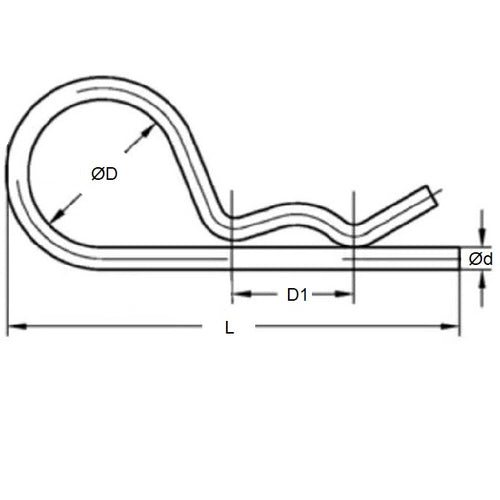

- Wire Thickness (d) : 6.00 mm
- Length (L) 126.0 mm
- Material Zinc Plated
- Drill Hole Size 7.00 mm
- Approx.Inside Eye (D) 28.00 to 32.00 mm
- Shaft Size Range 28.00 to 40.00 mm
- Approx. Bridge Length (D1) 44 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98350A950
- Huyett® BPM-060-105
- NoCor® BPM-060-105
- RPS6-105
- RPS6105
- BPM060105
